Product Details
Place of Origin: China
Brand Name: DaLi
Certification: CE
Model Number: DL-3300/4300/5300/6300/7300/8300/9300
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: 250000--450000 USD Per Set
Packaging Details: Regular Packing with blanket and stretch film or customized requirment package !
Delivery Time: 2-3 months
Payment Terms: T/T
Supply Ability: 5 sets per month
Name: |
HDPE/LDPE Geomembrane Sheet Productin Line |
Raw Material: |
High-density Polyethylene Resin |
Thickness Of Film: |
30mircometer--250mircometer |
Width: |
Flexible Width 3000mm--9000mm |
Total Power: |
600kw--1600kw |
Size Of Machine: |
25mx12mx4.5m |
Capacity: |
400--1200kg/h |
Raw Material Feeding Device: |
Automatic Feeding Raw Material Device |
Key Points: |
J-times T-die;Siemens PLC Control System,trimming Recycling System |
After-sales Service: |
Rovided: Engineers Available To Service Machinery Overseas |
Name: |
HDPE/LDPE Geomembrane Sheet Productin Line |
Raw Material: |
High-density Polyethylene Resin |
Thickness Of Film: |
30mircometer--250mircometer |
Width: |
Flexible Width 3000mm--9000mm |
Total Power: |
600kw--1600kw |
Size Of Machine: |
25mx12mx4.5m |
Capacity: |
400--1200kg/h |
Raw Material Feeding Device: |
Automatic Feeding Raw Material Device |
Key Points: |
J-times T-die;Siemens PLC Control System,trimming Recycling System |
After-sales Service: |
Rovided: Engineers Available To Service Machinery Overseas |

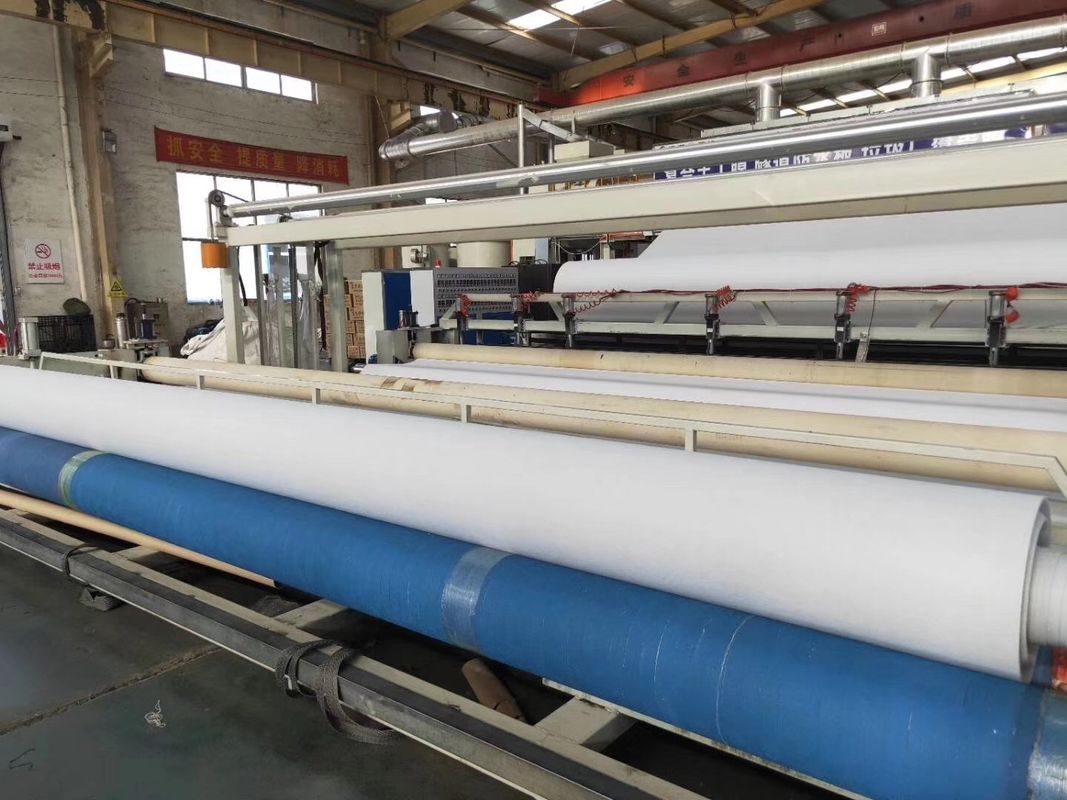

plastic sheet production line is designed and manufactured on the basis of absorbing domestic and foreign advanced technology. It’s specially for the production of PP, PE and PS sheets. This production line consists of 120/30 single screw extruder, mold of machine head, three-roll calender, Conveying and Edge-cutting Device, traction device, electric controlling cabinet and other components. The equipment has the advantages of fully automation, stable working performance, high output and low cost. It’s your ideal choiceto invest in plastic products.
Main technical parameters:
Products |
Smooth sheet,Textured Sheet, Spraying rough sheet, Geotextile composite sheet |
|||||||
Thickness range(mm) |
0.1-3.0mm | |||||||
T-die size(mm) |
2300 | 3300 | 4300 | 5300 | 6300 | 7300 | 8300 | 9300 |
Max working width(mm) |
2000 | 3000 | 4000 | 5000 | 6000 | 7000 | 8000 | 9000 |
Cooling Method |
Circulating water cooling |
