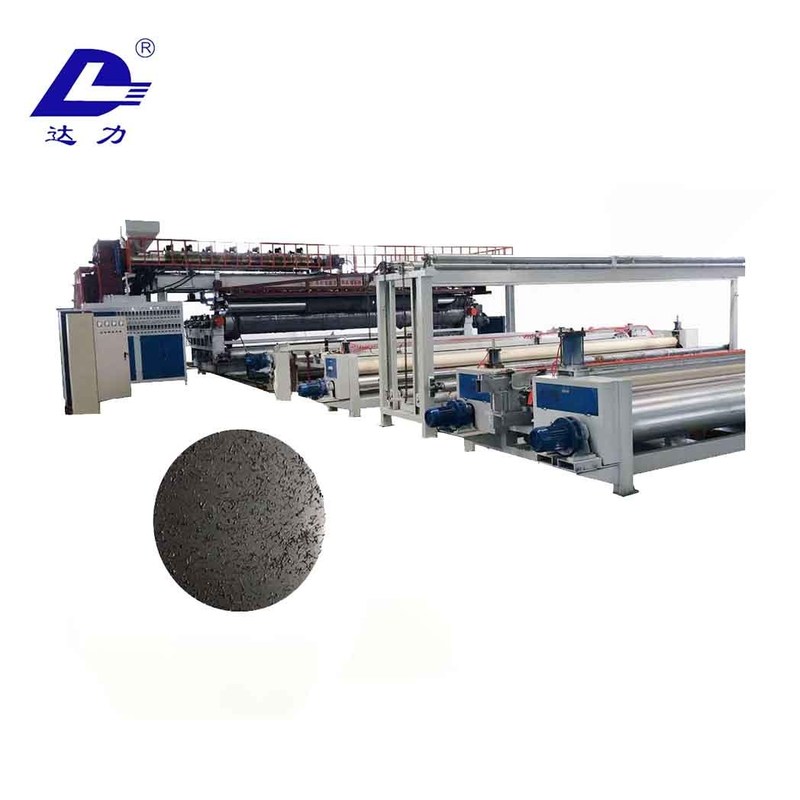

Spray Type Textured Geomembrane Production Line

Product Details

Place of Origin: China

Brand Name: DaLi

Certification: CE

Model Number: DL-5300/6300/7300/8300

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: 350000--480000 USD Per Set

Packaging Details: Regular Packing with blanket and stretch film or customized requirment package !

Delivery Time: 2-3 months

Payment Terms: T/T

Supply Ability: 3 sets per month

Get Best Price
Highlight:

Geomembrane Device

,

spray Geomembrane machine

,

hdpe geomembrane sheet making machine

Name:
Spray Type Textured Geomembrane Production Line
Raw Material:
High-density Polyethylene Resin
Thickness Of Film:
25mircometer--260mircometer
Width:
Flexible Width 5000mm-8000mm
Total Power:
800kw--1400kw
Size Of Machine:
25mx12mx4.5m
Capacity:
600--1000kg/h
Raw Material Feeding Device:
Automatic Feeding Raw Material Device
Key Points:
J-times T-die;Siemens PLC Control System,trimming Recycling System
After-sales Service:
Rovided: Engineers Available To Service Machinery Overseas
Name:
Spray Type Textured Geomembrane Production Line
Raw Material:
High-density Polyethylene Resin
Thickness Of Film:
25mircometer--260mircometer
Width:
Flexible Width 5000mm-8000mm
Total Power:
800kw--1400kw
Size Of Machine:
25mx12mx4.5m
Capacity:
600--1000kg/h
Raw Material Feeding Device:
Automatic Feeding Raw Material Device
Key Points:
J-times T-die;Siemens PLC Control System,trimming Recycling System
After-sales Service:
Rovided: Engineers Available To Service Machinery Overseas
Spray Type Textured Geomembrane Production Line

Spray Type Textured Geomembrane Production Line

The surface of the textured geomembrane consists of a concave-convex structure with high friction coefficient and anti-slip property. Compared with the smooth geomembrane, the textured geomembrane can be applied not only to the roof of the building for leak prevention, landscaping, farmland canal seepage prevention and soil and water conservation. Landfill reclamation, landfill in environmental engineering, three-waste treatment and environmental remediation, prevention of desertification, etc., can also be applied to steep slopes or slopes where the surface of the membrane needs to be covered, and other projects requiring a large friction coefficient. The preferred material for construction projects such as mountain construction and steep slope construction.



Composition and Advantage of Geomembrane Equipment by Spinneret Roughening Method

1,Active roll loading device with adjustable speed, suitable for roll loading of geomembrane with different thicknesses.

2. The unique design of the crawler traction device can ensure the uniform and smooth traction of geomembranes with different thicknesses.

3,Stable spray operation platform tower.

4,The design of the ingenious spray mechanism meet the different width of the geomembrane roughening and

can leave a margin on both sides of the geomembrane.

5, The entire production line intelligent communication control, high degree of automation.





Main technical parameters:

Products



Spray Type Textured Geomembrane Production Line

Thickness range(mm)

0.1-3.0mm

T-die size(mm)

2300 3300 4300 5300 6300 7300 8300 9300

Max working width(mm)

2000 3000 4000 5000 6000 7000 8000 9000

Cooling Method



Circulating water cooling





  • ​Finished products:

Spray Type Textured Geomembrane Production Line 0

Spray Type Textured Geomembrane Production Line 1



  • Packing & Loading Details (or customized packing instruction)

      1. Simply wrapped by the blanket first and the tight it by the cling stretch film.

      2. Export standard are supplied with well packed by plywood cartoon or inron cartoon. We can make the packages according to customer's request.

Spray Type Textured Geomembrane Production Line 2

Spray Type Textured Geomembrane Production Line 3

Spray Type Textured Geomembrane Production Line 4



  • Briefing about the company

      Changzhou Da Li Plastic Machinery Co., Ltd.



      Changzhou Xin Da Li Plastic Machinery Co., Ltd. is a subsidiary of Changzhou Da Li Plastic Machinery Co., Ltd.,

      located in Changzhou Wujin Science and Technology Industrial Park, was established in March 2015 with a registered

      capital of 10.8 million yuan, covering an area of over 10,000 square feet. We provide our clients with all kinds of plastic

      machinery products and technical services.

Spray Type Textured Geomembrane Production Line 5

Certification

Spray Type Textured Geomembrane Production Line 6



Business negotiation scenario

Spray Type Textured Geomembrane Production Line 7



Our Client representatives

Spray Type Textured Geomembrane Production Line 8

Our Services

One station service to make sure our customer get ancillary equipments and good service.

(1) Professional advice and rich experience help to choose machine.

(2) Warranty time: All machines are guaranteed for one year.

(3) Before the dispatch the equipment, we will conduct the commission of the machine and invite the client representative join us to witness it.

Once the machine reached the site of the clients, we will send our technicals to mantle up and commisson the machine, and train the local

employee.

(4)Any problem: If you have any questions or any demands, we will reply you within 24 hours inquiry.

(5) Additives: installation book, Manual book, tool box will be sent with machine.

Product Quality

All products are guaranteed for one year, if any problems happen in guarantee period, our company will maintain for free.

Technical Service

We can provide design, installation and debugging services or remote maintenance teaching.

Delivery The Cargo To Nearest Port

We will arrange the shipment and delivery the cargo to your nearest port, save time and cost.

Detail Product Information

Provide picture, video, instruction and product brochure.

Reply Timely

24 hours hot line ,we will reply email within 12 hours.



FAQ

1. What about your machine quality?
Our factory has more than 22 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate;

already exported to many countries and areas; already got customer’s good reputation.
2. What about your machine price?
Anytime we will garanteen quality first, no matter price is good or not for us. Quality is first, on the top quality basis, of coursse you will get r

easonable and satisfied price!

3. What about the delivey date?

Due to the non-standard size machine, we need to book all the relative parts according to the requirement of the clients, the delivery date would

be 1-- 3 moths accordingly.
3. How can you ensure the machines' quality after we put the order?
Before the delivery, we will send you machines' pictures and videos, or you can come to our factory to make the quality checking by yourself,

or by the third party inspection organization that contacted by your side.
