Product Details
Place of Origin: China
Brand Name: DaLi
Certification: CE
Model Number: DL-2300/3300/4300/5300/6300/7300 etc.
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: 90000-450000 USD Per Set
Packaging Details: Regular Packing with blanket and stretch film or customized requirment package !
Delivery Time: 2-3 months
Payment Terms: T/T
Supply Ability: 5 sets per month
Name: |
High Polymer Waterproof Sheet Production Line (with Self-adhesive/Anti-adhesive) |
Application: |
Project Of Subway,Tunnel,Water Conservation Etc. |
Material: |
Macro-molecule Sheet,HDPE/EVA/PP/TPO/LDPE Granule Etc. |
Voltage: |
380V 3P/50HZ, It Can Be Customized |
Power(w): |
580--1200KW |
Screw Design: |
Single /double Screw Extruder |
Certification: |
CE |
Name: |
High Polymer Waterproof Sheet Production Line (with Self-adhesive/Anti-adhesive) |
Application: |
Project Of Subway,Tunnel,Water Conservation Etc. |
Material: |
Macro-molecule Sheet,HDPE/EVA/PP/TPO/LDPE Granule Etc. |
Voltage: |
380V 3P/50HZ, It Can Be Customized |
Power(w): |
580--1200KW |
Screw Design: |
Single /double Screw Extruder |
Certification: |
CE |

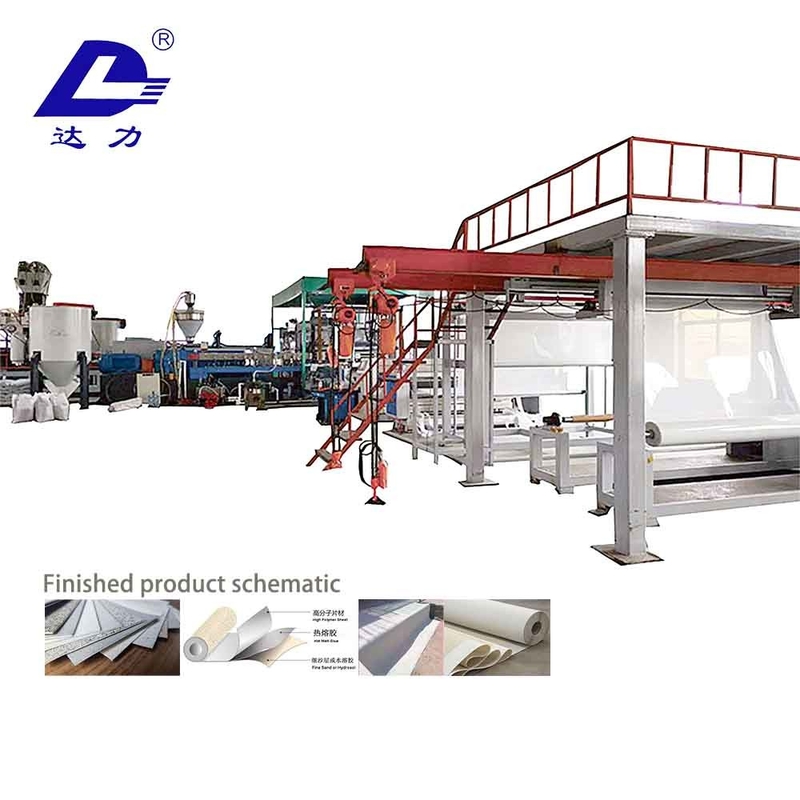

High Polymer Waterproof Sheet Production Line (with Self-adhesive/Anti-adhesive)
High polymer Self-adhesive sheet is based on macro-molecule sheet, composite self-adhesive glue on both sides, pasting barrier film to form a new type of waterproof material.
★Feature: Good structural performance; Strong peeling strength, tensile strength and break strength; Good flexibility; Anti-high and low temperature, anti-aging performance etc. It has long life time and is easy for installation.
★Usage: It is used in project of subway, tunnel and water conservation etc..
★The machine control is integrated by PLC system with parameter setting, data transmission and feedback and alarm etc.
Production processing:
This line is including two parts: Waterproof sheet production line and Adhesive glue coating line. It can produce smooth waterproof sheet independently, or the complete set can produce Self-adhesive/Anti-adhesive Sheet.
Waterproof sheet production line can produce the waterproof sheet independently by extrusion T-die, cooling and winding.
Parts of waterproof sheet production line go through extruding & casting→cooling →setting(no winding),then into the Adhesive glue coating line, it can produce self-adhesive/anti-adhesive waterproof sheet.
Products |
High Polymer Waterproof Sheet Production Line (with Self-adhesive/Anti-adhesive) |
|||||||
Thickness range(mm) | 0.5-3.0mm | |||||||
T-die size(mm) | 2300 | 3300 | 4300 | 5300 | 6300 | 7300 | 8300 | 9300 |
Max working width(mm) | 2000 | 3000 | 4000 | 5000 | 6000 | 7000 | 8000 | 9000 |
Cooling Method |
Circulating water cooling |
