Product Details:
|
Name: | Geomembrane Film Extrusion Production Line | Plastic Processed: | LLDPE/LDPE/HDPE |
---|---|---|---|
Application: | Sheet/ Film | Material: | Granule |
Voltage: | 380V 3P/50HZ, It Can Be Customized | Power(w): | 580--1200KW |
Screw Design: | Single /doble Crew Extruder | Certification: | CE |
Usage: | PE Film/CPE/TPE Film For Disposable Hand Glove | Thickness: | 0.5mm--3.0mm |
Weight: | 35T | Dimension(l*w*h): | 22mx12mx4m |
High Light: | Geomembrane Ldpe Sheet Extrusion,Geomembrane hdpe sheet extrusion line,Compound geosynthetics machine |
geomembrane film extrusion machine; geomembrane sheet extrusion machine; HDPE sheet machine; LDPE/LLDPE sheet extrusion
Geomembrane Sheet Extrusion Production Line
Extruder:
Parallel double screw extruder is characterized by high output and good plasticization. The vacuum exhaust improves the quality of the product. It can process various sorts of plastic.
Meter pump:
The meter pump with excellent quality alloy steel guarantees stable melting pressure and flow.
Mould:
Mould adopts high quality alloy steel and can make the material flow distributes evenly in the mouth mould with high active restricting device.
Traction:
The cooling roller is of large diameter,low temperature and S type material discharge. It enlarge the impulsive cooling area and shortens the length of the production line. Rubber and steel rollers are equipped to realize traction,which guarantees the needed friction force, and the surface quality of the sheet as well.
Corona treatment:
It eliminates the static electricity on the surface and enlarge the surface tension which guarantee the printing quality.
Double station coiling:
two torque motors supply the power to the machine, and pneumatic shafts do coiling work respectively.
Width of the sheet: 1500mm
Thickness: 0.2-1.5mm
Products |
Smooth sheet,Textured Sheet, Spraying rough sheet, Geotextile composite sheet |
|||||||
Thickness range(mm) | 0.5-3.0mm | |||||||
T-die size(mm) | 2300 | 3300 | 4300 | 5300 | 6300 | 7300 | 8300 | 9300 |
Max working width(mm) | 2000 | 3000 | 4000 | 5000 | 6000 | 7000 | 8000 | 9000 |
Cooling Method |
Circulating water cooling |

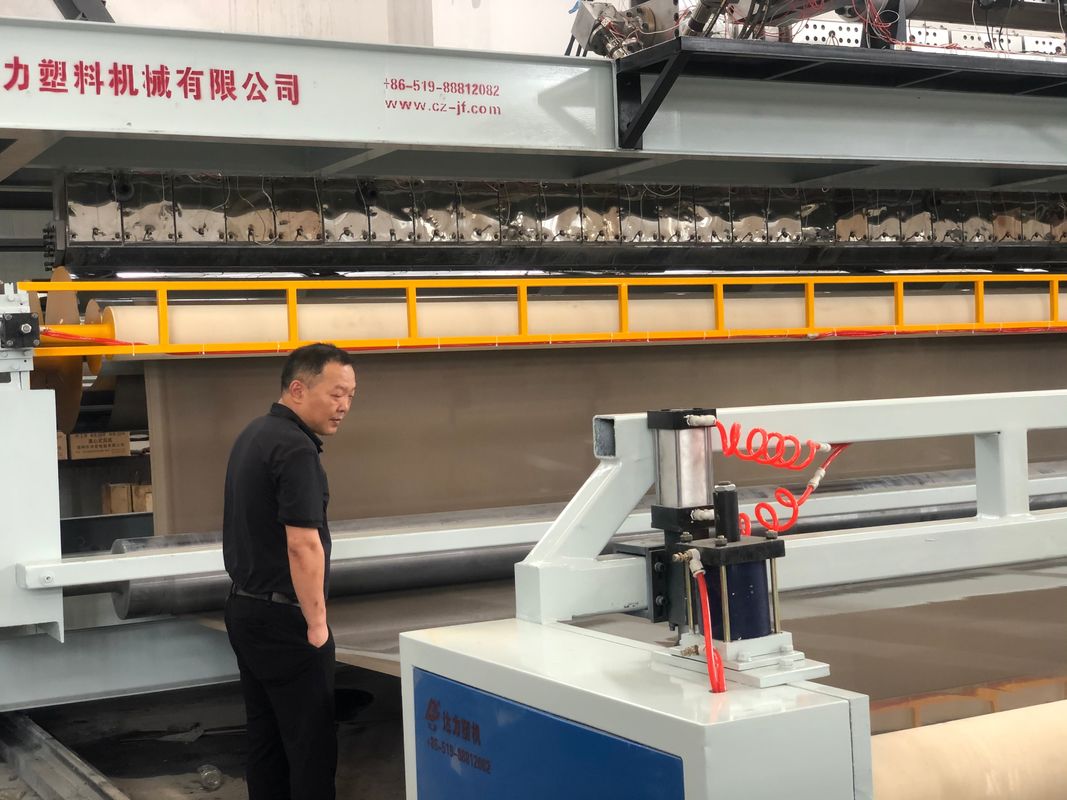

Scene of assmebly workshop
