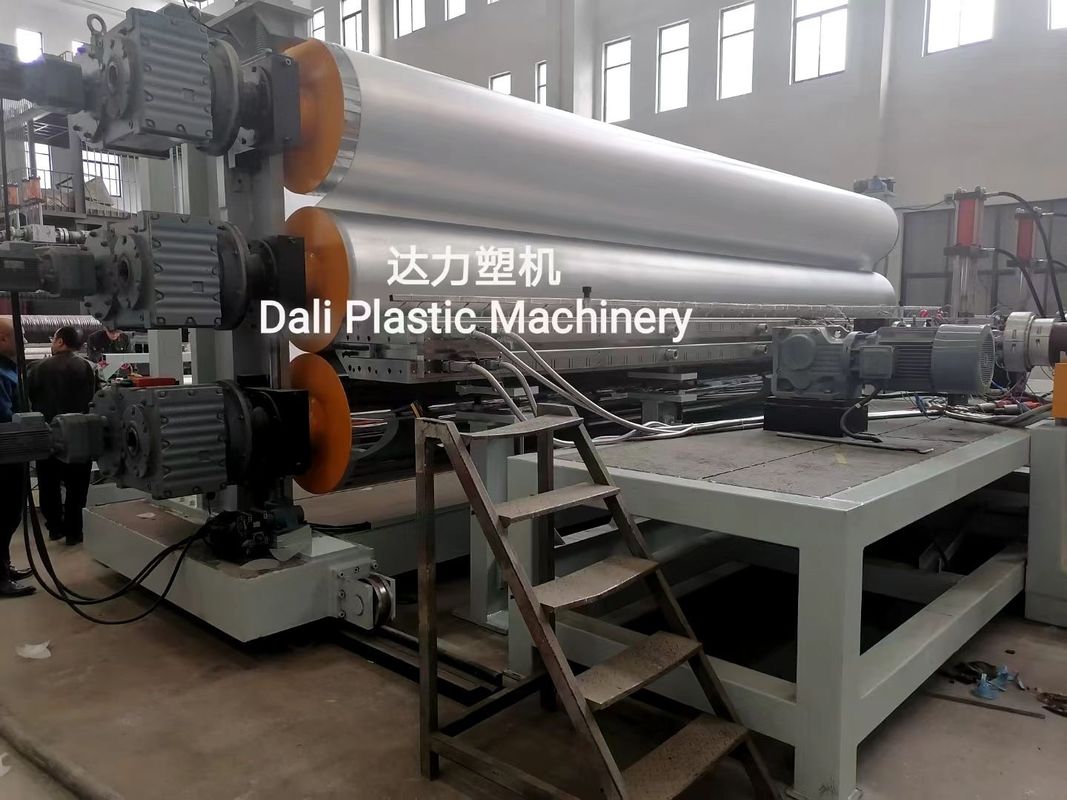

5m Min Geomembrane Making Machine Geocell Extruder Line

Product Details

Place of Origin: China

Brand Name: DaLi

Certification: CE

Model Number: DL-3300/4300/5300/6300/7300/8300/9300

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: 250000--450000 USD Per Set

Packaging Details: Regular Packing with blanket and stretch film or customized requirment package !

Delivery Time: 2-3 months

Payment Terms: T/T

Supply Ability: 5 sets per month

Get Best Price
Highlight:

5m Min Geomembrane Making Machine

,

5m geocell Extruder Line

,

5m geocell Extruder Machine

Name:
Geosynthetics Compound Casting Extrusion Film/sheet Production Line
Raw Material:
HDPE; LDPE
Thickness Of Film:
0.3mm--3mm
Width:
3000mm--8000mm
Install Power:
600--1600kw
Dimension:
25mx12mx4m
Output:
400--1200kg/h
Mechanic Speed:
1-5m/ Min
Application:
Landfill,sewage Treament,toxic And Hazardous Compounds Disposal
Name:
Geosynthetics Compound Casting Extrusion Film/sheet Production Line
Raw Material:
HDPE; LDPE
Thickness Of Film:
0.3mm--3mm
Width:
3000mm--8000mm
Install Power:
600--1600kw
Dimension:
25mx12mx4m
Output:
400--1200kg/h
Mechanic Speed:
1-5m/ Min
Application:
Landfill,sewage Treament,toxic And Hazardous Compounds Disposal
5m Min Geomembrane Making Machine Geocell Extruder Line

 HDPE geosynthetics film for casting extrsuion machine

 HDPE geomembrane film extruder machine



HDPE Geomembrane is one kind of waterproofing barrier type material using (Middle) High density PE as raw material,its full name is”High density PE geomembrane”. It has excellent environmental resistance and stress cracking performance, lowtemperature resistance, anti-aging, decay resistance, and big temperature using range (-60--+60), using life is about 50 years.



HDPE is an engineering plastic that is often underestimated and although HDPE is popular, it is sometimes confused with other engineering plastics. HDPE is a shortened name for High Density Polyethylene and available in two main grades, 300 and 500 grade. The higher the HDPE grade number the higher the density of the plastic is which improves the performance of the product. Although HDPE is unable to be bonded with currect adhesives, HDPE can be welded with purpose designed and economical welding equipment.



Main technical parameters:



Products



Smooth sheet,Textured Sheet, Spraying rough sheet, Geotextile composite sheet

Thickness range(mm) 0.1-3.0mm
T-die size(mm) 2300 3300 4300 5300 6300 7300 8300 9300
Max working width(mm) 2000 3000 4000 5000 6000 7000 8000 9000
Cooling Method



Circulating water cooling







     Our extrusiion machine produce  HDPE Sheet or "High Density Polyethylene" sheet  which offers excellent sliding properties and abrasion/wear resistance due to its low coefficient of friction. HDPE Sheet is very tough and impact resistant, even at low temperatures, it is lightweight, easy to weld but difficult to bond.





5m  Min Geomembrane Making Machine Geocell Extruder Line 0

5m  Min Geomembrane Making Machine Geocell Extruder Line 1









  • Showcase of the assmebly workshop



5m  Min Geomembrane Making Machine Geocell Extruder Line 2

  • Aplication of the products

5m  Min Geomembrane Making Machine Geocell Extruder Line 3



  • Packing & Loading Details (or customized packing instruction)

1. Simply wrapped by the blanket first and the tight it by the cling stretch film.

2. Export standard are supplied with well packed by plywood cartoon or inron cartoon. We can make the packages according to customer's request.



5m  Min Geomembrane Making Machine Geocell Extruder Line 4





5m  Min Geomembrane Making Machine Geocell Extruder Line 5



  • Briefing about the company

Changzhou Da Li Plastic Machinery Co., Ltd.



Changzhou Xin Da Li Plastic Machinery Co., Ltd. is a subsidiary of Changzhou Da Li Plastic Machinery Co., Ltd.,

located in Changzhou Wujin Science and Technology Industrial Park, was established in March 2015 with a registered

capital of 10.8 million yuan, covering an area of over 10,000 square feet. We provide our clients with all kinds of plastic

machinery products and technical services.





5m  Min Geomembrane Making Machine Geocell Extruder Line 6

Certification

5m  Min Geomembrane Making Machine Geocell Extruder Line 7



Scenarions of busineess negotiation



5m  Min Geomembrane Making Machine Geocell Extruder Line 8



Our Client representatives:



5m  Min Geomembrane Making Machine Geocell Extruder Line 9

5m  Min Geomembrane Making Machine Geocell Extruder Line 10

Our Services

One station service to make sure our customer get ancillary equipments and good service.

(1) Professional advice and rich experience help to choose machine.

(2) Warranty time: All machines are guaranteed for one year.

(3) Before the dispatch the equipment, we will conduct the commission of the machine and invite the client representative join us to witness it.

Once the machine reached the site of the clients, we will send our technicals to mantle up and commisson the machine, and train the local

employee.

(4)Any problem: If you have any questions or any demands, we will reply you within 24 hours inquiry.

(5) Additives: installation book, Manual book, tool box will be sent with machine.

Product Quality

All products are guaranteed for one year, if any problems happen in guarantee period, our company will maintain for free.

Technical Service

We can provide design, installation and debugging services or remote maintenance teaching.

Delivery The Cargo To Nearest Port

We will arrange the shipment and delivery the cargo to your nearest port, save time and cost.

Detail Product Information

Provide picture, video, instruction and product brochure.

Reply Timely

24 hours hot line ,we will reply email within 12 hours.



FAQ

1. What about your machine quality?
Our factory has more than 22 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate;

already exported to many countries and areas; already got customer’s good reputation.
2. What about your machine price?
Anytime we will garanteen quality first, no matter price is good or not for us. Quality is first, on the top quality basis, of coursse you will get r

easonable and satisfied price!

3. What about the delivey date?

Due to the non-standard size machine, we need to book all the relative parts according to the requirement of the clients, the delivery date would

be 1-- 3 moths accordingly.
3. How can you ensure the machines' quality after we put the order?
Before the delivery, we will send you machines' pictures and videos, or you can come to our factory to make the quality checking by yourself,

or by the third party inspection organization that contacted by your side.
