Product Details:
|
Name: | Geomembrane Film Extrusion Production Line | Plastic Processed: | LLDPE/LDPE/HDPE |
---|---|---|---|
Application: | Sheet/ Film | Material: | Granule |
Voltage: | 380V 3P/50HZ, It Can Be Customized | Power(w): | 580--1200KW |
Screw Design: | Single /doble Crew Extruder | Certification: | CE |
Usage: | PE Film/CPE/TPE Film For Disposable Hand Glove | Thickness: | 0.5mm--3.0mm |
Weight: | 35T | Dimension(l*w*h): | 22mx12mx4.5m |
High Light: | geomembrane extrusion machine,HDPE Plastic Film Making Machine,Ldpe Plastic Film Making Machine |
geomembrane sheet extrusion machine; HDPE sheet machine; LDPE/LLDPE sheet extrusion
Spray Type Textured Geomembrane Machine
Main technical parameters:
Products |
Smooth sheet,Textured Sheet, Spraying rough sheet, Geotextile composite sheet |
|||||||
Thickness range(mm) | 0.1-3.0mm | |||||||
T-die size(mm) | 2300 | 3300 | 4300 | 5300 | 6300 | 7300 | 8300 | 9300 |
Max working width(mm) | 2000 | 3000 | 4000 | 5000 | 6000 | 7000 | 8000 | 9000 |
Cooling Method |
Circulating water cooling |
Brief Introduction:
This device realizes spraying single and double-side textured geomembrane online, changing the original secondary molding.It includes a couple of screws and sprayers.Firstly heat plastic materials at high temperature,then spray the molten plastic granule onto the surface of geomembrane and cool to obtain a textured geomembrane.Intelligent communication control and high degree of automation are available for the entire production line.
Product Advantages:
The quality of the product extruded through this device is better than textured geomembrane produced by other crafts, which guarantees various performance of the geomembrane and increases the adhesion to the geotextile.Since this device realizes spraying single and double-side textured geomembrane online,the raw material requirements for geomembrane production are not strict.Moreover,this equipment can work with blown film equipment or calendering equipment to produce textured geomembrane.
Applications:
Leak-proof roofs of buildings, landscaping, anti-seepage of farmland canals and soil and water conservation, reclamation of tidal flats, landfills in environmental engineering, three waste treatment and environmental improvement.

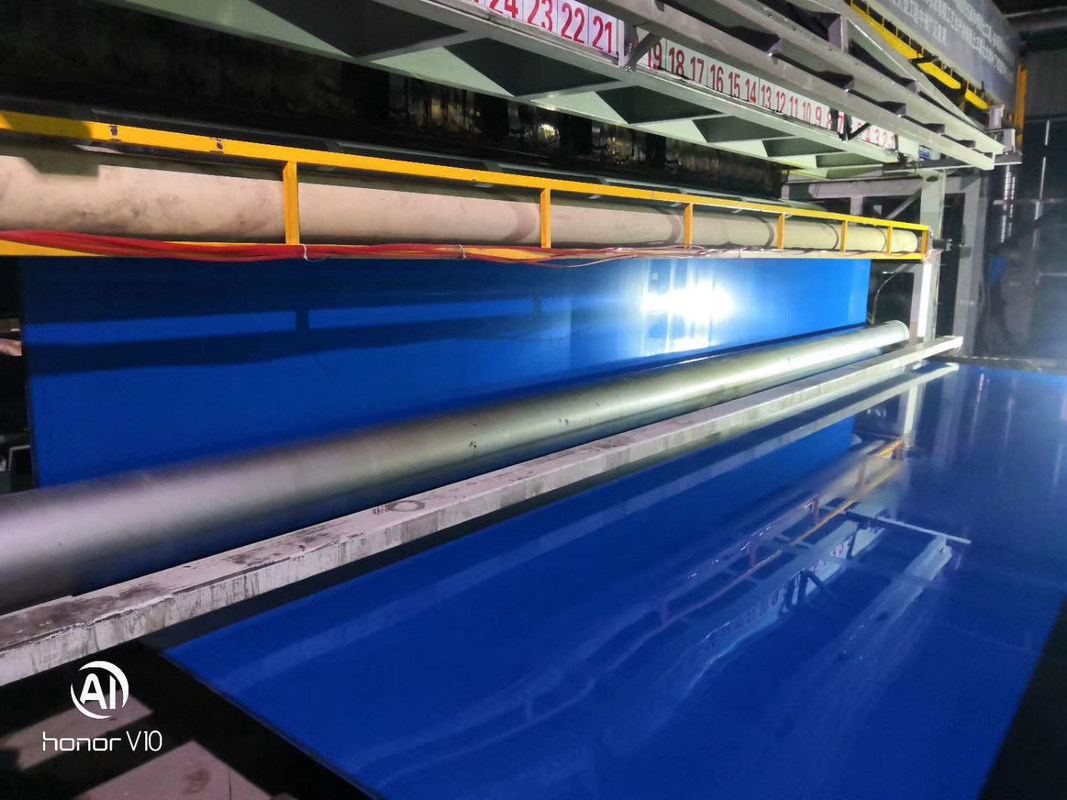

Scene of assmebly workshop
