Product Details:
|
Name: | Automatic HDPE/LDPE Geotextile Compound Production Line | Raw Material: | LLDPE;HDPE; LDPE |
---|---|---|---|
Thickness Of Film: | 0.5mm--3mm | Width: | Flexible Width 6000mm |
Total Installtion Power: | 800--1200kw | Dimension: | 25mx12mx4m |
Capacity: | 800--1200kg/h | Line Speed: | 3-8m/ Min |
Application: | Water Conservancy;Lanscape Works;AgricultureTransportation Engineering; | After-sales Service: | Rovided: Engineers Available To Service Machinery Overseas |
High Light: | 4500MM Compound Geomembrane Making Machine,hdpe geotextile machinery,Polylam Extrusion Coating Lamination Plant |

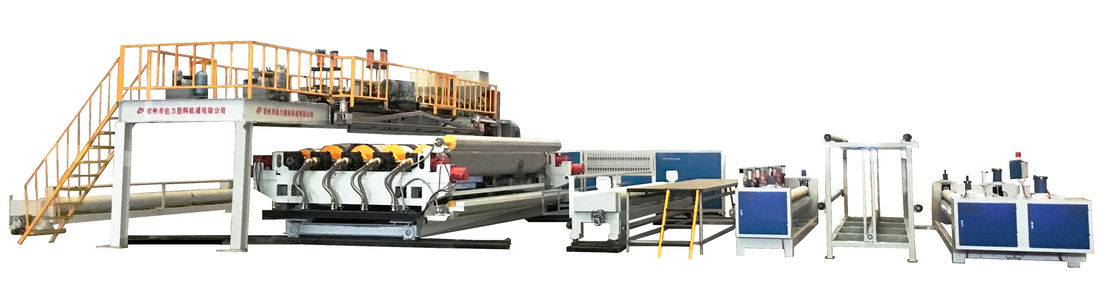

Geotextile compound line is a complete production line adopting calendering compound process to heat,extrude,press,cool LDPEPPPVCEVA and other raw material.It is used for producing monolayer or multilayer compound film for all kinds of geotexitlenon-woven fabric weaving fabric. Also it can produce geotextile flashing,etc.
Usage: Sanitation Project(MSW landfill,sewage treatment,toxic and hazardous compounds disposal sites storage of dangerous goods);Water Conservancy(rivers,lakes water reservoir dam seepage control and stopping leaks and consolidation and the impermemeable
drains);Construction Projects(subwayconstruction,building underground engineering and the roof garden impermeable,sewage pipe linging);Landscape Works(artificial lake,pool);Agricutural Engineering(reservoir,drinking water tanks,water storage pound the irrigation system impervious);Transportation(highway) and so on.
Main technical parameters : |
Suitable fabrics |
Geotextile,Plastic woven fabrics,Non woven fabrics
|
|||
Model and specifications |
3300
|
4500
|
6300 | 8300 |
Laminate layers |
one farbric one film,two fabrics one film,flashing
|
|||
Thickness of compound film (mm)
|
0.2-2.5
|
|||
Flashing thickness(mm)
|
0.5-2.5
|
|||
Main machine power(kw) |
75 - 150
|
|||
Specifications of embossing roller (mm) |
400×3300
|
500×4500
|
600×6300
|
800×8300 |
Max. compound width |
3000
|
4200
|
6000 | 8000 |
Cooling method |
Circulating water cooling
|
The machine can be designed and manufactured according to the customer's requirement.
|
