          Product Details
Place of Origin: China
Brand Name: DaLi
Certification: CE
Model Number: DL-3300/4300/5300/6300/7300/8300/9300
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: 250000--450000 USD Per Set
Packaging Details: Regular Packing with blanket and stretch film or customized requirment package !
Delivery Time: 2-3 months
Payment Terms: T/T
Supply Ability: 5 sets per month
| Name: | Geosynthetics Compound  Casting Extrusion Film/sheet Production Line | Raw Material: | HDPE; LDPE | Thickness Of Film: | 0.3mm--3mm | Width: | Flexible Width 3000mm--8000mm | Total Installtion Power: | 600--1600kw | Dimension: | 25mx12mx4m | Capacity: | 400--1200kg/h | Line Speed: | 1-5m/ Min | Application: | Water Conservancy;Lanscape Works;AgricultureTransportation Engineering; | After-sales Service: | Rovided: Engineers Available To Service Machinery Overseas |
| Name: | Geosynthetics Compound  Casting Extrusion Film/sheet Production Line |
| Raw Material: | HDPE; LDPE |
| Thickness Of Film: | 0.3mm--3mm |
| Width: | Flexible Width 3000mm--8000mm |
| Total Installtion Power: | 600--1600kw |
| Dimension: | 25mx12mx4m |
| Capacity: | 400--1200kg/h |
| Line Speed: | 1-5m/ Min |
| Application: | Water Conservancy;Lanscape Works;AgricultureTransportation Engineering; |
| After-sales Service: | Rovided: Engineers Available To Service Machinery Overseas |
Adopting casting film process to heat,extrude,press,cool HDPE, LDPE, MDPE,EVA and other raw materials.
Usage of HDPE geomembrane film extruder machine: Also used for coating many kinds of non-woven fabrics, woven fabrics,and getextile.

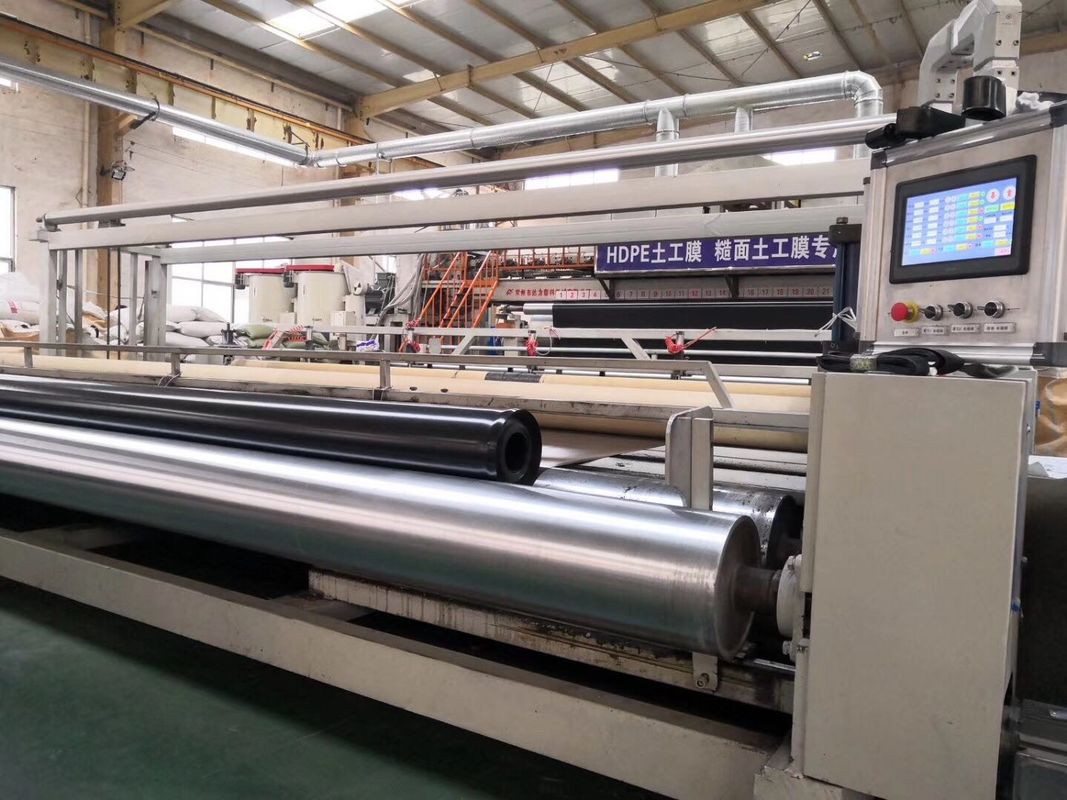

Process of HDPE geomembrane film extruder machine
Main technical parameters:
| Products |
 Smooth sheet,Textured Sheet, Spraying rough sheet, Geotextile composite sheet | |||||||
| Thickness range(mm) | 0.1-3.0mm | |||||||
| T-die size(mm) | 2300 | 3300 | 4300 | 5300 | 6300 | 7300 | 8300 | 9300 |
| Max working width(mm) | 2000 | 3000 | 4000 | 5000 | 6000 | 7000 | 8000 | 9000 |
| Cooling Method |
 Circulating water cooling | |||||||
