Double Extrusion Lamination Film Coating Machine With Single Screw

Product Details

Place of Origin: China

Brand Name: DaLi

Certification: CE

Model Number: DL-1400--2800 plastics laminating machine

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: 9000--160000 USD Per Set

Packaging Details: Regular Packing with blanket and stretch film or customized requirment package !

Delivery Time: 2-3 months

Payment Terms: T/T

Supply Ability: 5 sets per month

Get Best Price
Highlight:

Double sided Film Coating Machine

,

Double sided Extrusion Lamination Machine

,

single crew Film Coating Machine

Name:
PE/PP Plastics Laminating Machine
Plastic Processed:
LLDPE/LDPE/POE/EVA/Elastomer/Polythylene
Application:
Sheet/ Film
Max Capacity:
300kg/h
Key Selling Points:
Double Sided Lamination
Power(w):
100--220 KW
Screw Design:
Single Screw Extruder
Certification:
CE
Usage:
Laminating On The Substrates(base Fabric, Soft Paper))
Thickness:
0.015mm--0.1mm
Weight:
15T
Dimension(l*w*h):
12mx4.5mx3.5m
Output:
1.5T--4T/24 Hours
Name:
PE/PP Plastics Laminating Machine
Plastic Processed:
LLDPE/LDPE/POE/EVA/Elastomer/Polythylene
Application:
Sheet/ Film
Max Capacity:
300kg/h
Key Selling Points:
Double Sided Lamination
Power(w):
100--220 KW
Screw Design:
Single Screw Extruder
Certification:
CE
Usage:
Laminating On The Substrates(base Fabric, Soft Paper))
Thickness:
0.015mm--0.1mm
Weight:
15T
Dimension(l*w*h):
12mx4.5mx3.5m
Output:
1.5T--4T/24 Hours

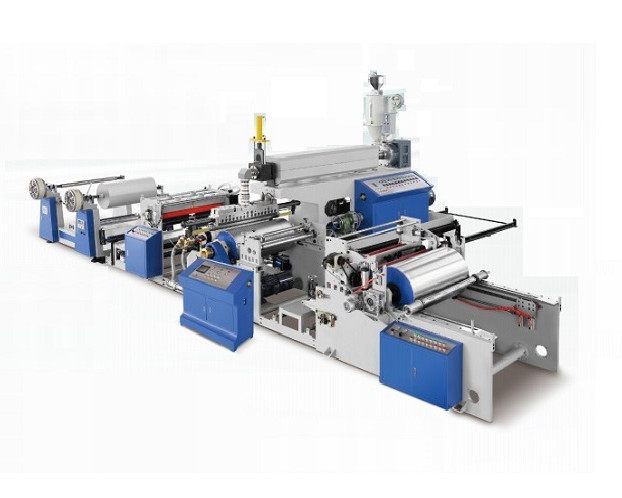

Double Extrusion Lamination Film Coating Machine With Single Screw

High Speed Double Extrusion Lamination Machine Double Sided Film Coating MachinePlastics lamingting machine



Full Automatic High Speed Double Side Extrusion Lamination Machine with Hydraulic Rodless and Auto Splicer. High speed Lamination.

Machine uses lamination grade LDPE , LLDPE , PP EVA EAA as coatingmaterial , mainly designed for paper double side coating , real production speed can reach 180M / Min .

Entire Machine control by PLC , weight more than 50tons , to ensure machine stable while running at 180M / Min.

  • Full detaied of specifcations:



Material

PE,EVA,LLDPE,LDPE, PP and other granule



Working width

1100--2500mm max



Thickness range

0.015mm to 0.1mm



Screw Dia. and L/D

Φ90---120×35:1 X1
T die width 1400---2800mm
Roller surface length 1400--2800mm
Winding Diameter Φ500
Power supply Three Phase 480V( ±10% )60hz, Single Phase 120V 60Hz 3P,480V( ±10% ) 60Hz, Single phase, 120V 60Hz
Mechanical speed: 30-100m/min
Extrusion capacity(Maximum) 80~180kg/h(varies with material)



Installation power

About 90--180kw ( actual consumption is 40%-50% of total

installation power)

Installation space

L=12M; W=4.5m; H=3.5m





  • Processing flow:

Unwinding ⇒Extrusion ⇒Laminating⇒Trimming⇒Pulling⇒Slitting or Rolling



Scene of assmebly workshop



Double Extrusion Lamination Film Coating Machine With Single Screw 0

Double Extrusion Lamination Film Coating Machine With Single Screw 1

Double Extrusion Lamination Film Coating Machine With Single Screw 2



Double Extrusion Lamination Film Coating Machine With Single Screw 3

  •
  • Showcase of the assmebly workshop

Double Extrusion Lamination Film Coating Machine With Single Screw 4





  • Aplication of the products

Double Extrusion Lamination Film Coating Machine With Single Screw 5

Double Extrusion Lamination Film Coating Machine With Single Screw 6

  • Packing & Loading Details (or customized packing instruction)

1. Simply wrapped by the blanket first and the tight it by the cling stretch film.

2. Export standard are supplied with well packed by plywood cartoon or inron cartoon. We can make the packages

     according to customer's request.





Double Extrusion Lamination Film Coating Machine With Single Screw 7

Double Extrusion Lamination Film Coating Machine With Single Screw 8



  • Briefing about the company

Changzhou Da Li Plastic Machinery Co., Ltd.



     Changzhou Xin Da Li Plastic Machinery Co., Ltd. is a subsidiary of Changzhou Da Li Plastic Machinery Co., Ltd.,

located in Changzhou Wujin Science and Technology Industrial Park, was established in March 2015 with a registered

capital of 10.8 million yuan, covering an area of over 10,000 square feet. We provide our clients with all kinds of plastic

machinery products and technical services.





Double Extrusion Lamination Film Coating Machine With Single Screw 9

Certification

Double Extrusion Lamination Film Coating Machine With Single Screw 10



Scenarions of busineess negotiation



Double Extrusion Lamination Film Coating Machine With Single Screw 11

Double Extrusion Lamination Film Coating Machine With Single Screw 12



Our Client representatives:



Double Extrusion Lamination Film Coating Machine With Single Screw 13

Double Extrusion Lamination Film Coating Machine With Single Screw 14

Our Services

One station service to make sure our customer get ancillary equipments and good service.

(1) Professional advice and rich experience help to choose machine.

(2) Warranty time: All machines are guaranteed for one year.

(3) Before the dispatch the equipment, we will conduct the commission of the machine and invite the client representative join us to witness it.

      Once the machine reached the site of the clients, we will send our technicals to mantle up and commisson the machine, and train the local

      employee.

(4)Any problem: If you have any questions or any demands, we will reply you within 24 hours inquiry.

(5) Additives: installation book, Manual book, tool box will be sent with machine.

Product Quality

All products are guaranteed for one year, if any problems happen in guarantee period, our company will maintain for free.

Technical Service

We can provide design, installation and debugging services or remote maintenance teaching.

Delivery The Cargo To Nearest Port

We will arrange the shipment and delivery the cargo to your nearest port, save time and cost.

Detail Product Information

Provide picture, video, instruction and product brochure.

Reply Timely

24 hours hot line ,we will reply email within 12 hours.



FAQ

1. What about your machine quality?
Our factory has more than 22 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate;

already exported to many countries and areas; already got customer’s good reputation.
2. What about your machine price?
Anytime we will garanteen quality first, no matter price is good or not for us. Quality is first, on the top quality basis, of coursse you will get r

easonable and satisfied price!

3.  What about the delivey date?

Due to the non-standard size machine, we need to book all the relative parts according to the requirement of the clients, the delivery date would

be 1-- 3 moths accordingly.
3. How can you ensure the machines' quality after we put the order?
Before the delivery, we will send you machines' pictures and videos, or you can come to our factory to make the quality checking by yourself,

or by the third party inspection organization that contacted by your side.
