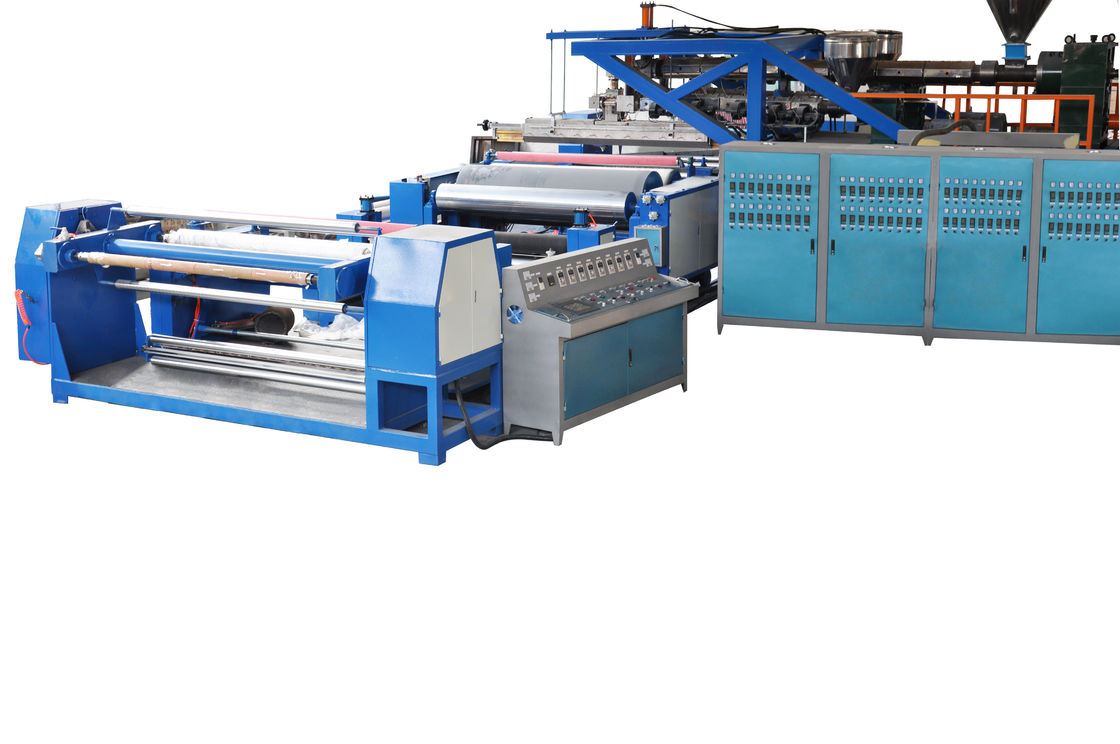

Product Details:
|
Name: | PE/PP Plastics Laminating Machine | Plastic Processed: | LLDPE/LDPE/POE/EVA/Elastomer/Polythylene |
---|---|---|---|
Application: | Sheet/ Film | Material: | Granule |
Voltage: | 380V 3P/50HZ, It Can Be Customized | Power(w): | 100--220 KW |
Screw Design: | Single Crew Extruder | Certification: | CE |
Usage: | Laminating On The Substrates(base Fabric, Soft Paper)) | Thickness: | 0.015mm--0.1mm |
Weight: | 15T | Dimension(l*w*h): | 12mx4.5mx3.5m |
Output: | 1.5T--4T/24 Hours | ||
High Light: | 4300mm pp woven sack lamination machine,4300mm woven sack lamination machine,4300mm Lamination Machine For Pp Woven Bags |
1. The extruder and haul-off adopt imported AC frequency control device, vacuum pump and haul-off motors adopt high-quality brand.
2. The haul-off methods are two-claw, three-claw, four-claw, six-claw, eight-claw etc.
3. You may choose saw cutting type or planetary cutting type. It is additionally attached with the length counter and intensifying device.
4. The equipment is with the reliable performance and high production efficiency.
This production line laminate paper with PE film,making it water-proof,oil-proof,seepage-proof.This kind of material normally used in clothing packaging,printing packaging and so on.
This line can laminate paper with one side or two sides,also can laminate paper with other material.
Material |
PE,EVA,TPR,PP,and other granule |
Working width |
1100--2500mm max |
Thickness range |
0.015mm to 0.1mm |
Screw Dia. and L/D |
Φ90---120×35:1 X1 |
T die width | 1400---2800mm |
Roller surface length | 1400--2800mm |
Winding Diameter | Φ500 |
Power supply | Three Phase 480V( ±10% )60hz, Single Phase 120V 60Hz 3P,480V( ±10% ) 60Hz, Single phase, 120V 60Hz |
Mechanical speed: | 30-100m/min |
Extrusion capacity(Maximum) | 80~180kg/h(varies with material) |
Installation power |
About 90--180kw ( actual consumption is 40%-50% of total installation power) |
Installation space |
L=12M; W=4.5m; H=3.5m
|
Unwinding ⇒Extrusion ⇒Laminating⇒Trimming⇒Pulling⇒Slitting or Rolling
Scene of assmebly workshop
