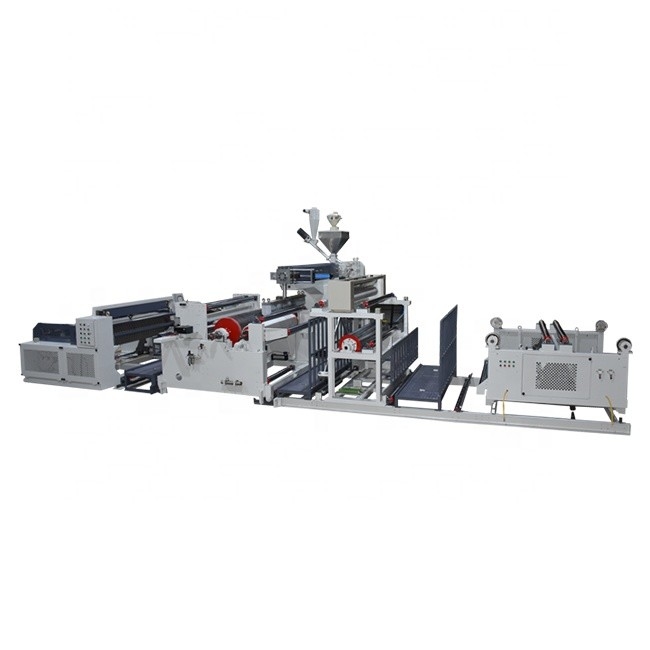

LLDPE Heat Press Cast Film Extrusion Lamination Machine

Certification
China Changzhou Dali Plastics Machinery Co., Ltd certification
I'm Online Chat Now

LLDPE Heat Press Cast Film Extrusion Lamination Machine

LLDPE Heat Press Cast Film Extrusion Lamination Machine
LLDPE Heat Press Cast Film Extrusion Lamination Machine

Large Image :  LLDPE Heat Press Cast Film Extrusion Lamination Machine

Product Details:
Place of Origin: China
Brand Name: DaLi
Certification: CE
Model Number: DL-1400--2800 plastics laminating machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 9000--160000 USD Per Set
Packaging Details: Regular Packing with blanket and stretch film or customized requirment package !
Delivery Time: 2--3month
Payment Terms: T/T
Supply Ability: 10sets per month

LLDPE Heat Press Cast Film Extrusion Lamination Machine

Description
Name: PE/PP Plastics Laminating Machine Plastic Processed: LLDPE/LDPE/POE/EVA/Elastomer/Polythylene
Application: Commodity, Textiles Laminating Method: Heat And Press
Voltage: 380V 3P/50HZ, It Can Be Customized Power(w): 100--220 KW
Screw Design: Single Crew Extruder Certification: CE
Usage: Laminating On The Substrates(base Fabric, Soft Paper)) Thickness: 0.015mm--0.1mm
Weight: 15T Dimension(l*w*h): 12mx4.5mx3.5m
Output: 1.5T--4T/24 Hours
High Light:

Cast Film Extrusion Lamination Machine

,

LLDPE Extrusion Lamination Machine

,

LLDPE extruder lamination machine

Cast Film Extrusion Laminating Machine Laminating Extruder



Plastic and Fabric Material Application Industrial Laminating Machine can processing EPE foam sheet, PU foam sheet, EVA foam sheet, XPE foam sheet, and other soft sheet with plastic film, OPP color film, kraft paper, aluminum foil, non-woven fabric, etc. These products could apply for packaging bags, baby climb pad, moisture proof pad, greenhouse cover, etc.



After melting plastic granule material, the extruder produce a layer of PE film as medium of processing objects. Then rollers laminate and emboss them to make uniform pattern on surface. Finally the laminating machines produce out new materials with high sense of concavo-convex without bubble, while moistureproof, heat insulation and heat preservation.



Material

PE,EVA,TPR,PP,and other granule



Working width

1100--2500mm max



Thickness range

0.015mm to 0.1mm



Screw Dia. and L/D

Φ90---120×35:1 X1
T die width 1400---2800mm
Roller surface length 1400--2800mm
Winding Diameter Φ500
Power supply Three Phase 480V( ±10% )60hz, Single Phase 120V 60Hz 3P,480V( ±10% ) 60Hz, Single phase, 120V 60Hz
Mechanical speed: 30-100m/min
Extrusion capacity(Maximum) 80~180kg/h(varies with material)



Installation power

About 90--180kw ( actual consumption is 40%-50% of total

installation power)

Installation space

L=12M; W=4.5m; H=3.5m





  • Processing flow:

Extrusion  ⇒Mould ⇒Shaped sink⇒Dryer⇒Glue hanging machine ⇒Hauling enginer⇒Dryer⇒Winder



Scene of assmebly workshop



LLDPE Heat Press Cast Film Extrusion Lamination Machine 0LLDPE Heat Press Cast Film Extrusion Lamination Machine 1



LLDPE Heat Press Cast Film Extrusion Lamination Machine 2



LLDPE Heat Press Cast Film Extrusion Lamination Machine 3

  •
  • Showcase of the assmebly workshop

LLDPE Heat Press Cast Film Extrusion Lamination Machine 4

  • Aplication of the products

LLDPE Heat Press Cast Film Extrusion Lamination Machine 0



  • Packing & Loading Details (or customized packing instruction)

1. Simply wrapped by the blanket first and the tight it by the cling stretch film.

2. Export standard are supplied with well packed by plywood cartoon or inron cartoon. We can make the packages

     according to customer's request.





LLDPE Heat Press Cast Film Extrusion Lamination Machine 6

LLDPE Heat Press Cast Film Extrusion Lamination Machine 7



  • Briefing about the company

Changzhou Da Li Plastic Machinery Co., Ltd.



     Changzhou Xin Da Li Plastic Machinery Co., Ltd. is a subsidiary of Changzhou Da Li Plastic Machinery Co., Ltd.,

located in Changzhou Wujin Science and Technology Industrial Park, was established in March 2015 with a registered

capital of 10.8 million yuan, covering an area of over 10,000 square feet. We provide our clients with all kinds of plastic

machinery products and technical services.





LLDPE Heat Press Cast Film Extrusion Lamination Machine 8

Certification

LLDPE Heat Press Cast Film Extrusion Lamination Machine 9



Scenarions of busineess negotiation



LLDPE Heat Press Cast Film Extrusion Lamination Machine 10

LLDPE Heat Press Cast Film Extrusion Lamination Machine 11



Our Client representatives:



LLDPE Heat Press Cast Film Extrusion Lamination Machine 12

LLDPE Heat Press Cast Film Extrusion Lamination Machine 13

Our Services

One station service to make sure our customer get ancillary equipments and good service.

(1) Professional advice and rich experience help to choose machine.

(2) Warranty time: All machines are guaranteed for one year.

(3) Before the dispatch the equipment, we will conduct the commission of the machine and invite the client representative join us to witness it.

      Once the machine reached the site of the clients, we will send our technicals to mantle up and commisson the machine, and train the local

      employee.

(4)Any problem: If you have any questions or any demands, we will reply you within 24 hours inquiry.

(5) Additives: installation book, Manual book, tool box will be sent with machine.

Product Quality

All products are guaranteed for one year, if any problems happen in guarantee period, our company will maintain for free.

Technical Service

We can provide design, installation and debugging services or remote maintenance teaching.

Delivery The Cargo To Nearest Port

We will arrange the shipment and delivery the cargo to your nearest port, save time and cost.

Detail Product Information

Provide picture, video, instruction and product brochure.
