Extrusion Coating Line For Sheet Film On PP Woven Fabric

Extrusion Coating Line For Sheet Film On PP Woven Fabric
Extrusion Coating Line For Sheet Film On PP Woven Fabric

Large Image :  Extrusion Coating Line For Sheet Film On PP Woven Fabric

Product Details:
Place of Origin: China
Brand Name: DaLi
Certification: CE
Model Number: DL-1400--2800 plastics laminating machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 9000--160000 USD Per Set
Packaging Details: Regular Packing with blanket and stretch film or customized requirment package !
Delivery Time: 2--3month
Payment Terms: T/T
Supply Ability: 10sets per month

Extrusion Coating Line For Sheet Film On PP Woven Fabric

Description
Name: PE/PP Plastics Laminating Machine Automatic Grade: Automatic
Application: Sheet/ Film Material: Granule
Voltage: 380V 3P/50HZ, It Can Be Customized No. Of Roller: 4
Screw Design: Single Crew Extruder Certification: CE
Usage: Laminating On The Substrates(base Fabric, Soft Paper)) Thickness: 0.015mm--0.1mm
Weight: 15T Dimension(l*w*h): 12mx4.5mx3.5m
Output: 1.5T--4T/24 Hours
High Light:

sheet film extrusion coating line

,

Woven Fabric extrusion coating line

,

sheet film extrusion lamination machine

Industrial Plastic Automatic Extrusion Coating Laminating Machine For Pp

This machine can do coating on pp woven fabric uniformly by using melted PP and PE mixture to make one-side or two-side coated woven bags. It can also make use of the good adhesive property of PP and PE mixture at melting status to laminate the printed paper, OPP or CPP film to the pp woven fabric or nonwoven fabric to get paper or film laminated bags.



Temperature of the machine is controlled automatically and width of coating and laminating is adjustable; fabric roller is put on by pneumatic device, six-station for material conveying, pneumatic-hydraulic edge correction forrewinderand magnetic powder clutch to control tension are adopted; pneumatic structure for compression roller is adopted to make the pressure uniform and adjustable; frictional winder is configured. Swing-type frame can be added, if required.



Different Structures for Option:

1. If you want to make two-side laminated bags with glossy effect, you can choose six-roller two-die two mirror rollers’ structure.

2. If you want to make two-side laminated bags with matt effect, you can choose four-roller two-die structure.

3. We can also make double-extruder two-die two mirror rollers’ structure according to customer’s requirement.



Processing flow:

Extrusion ⇒Mould ⇒Shaped sink⇒Dryer⇒Glue hanging machine ⇒Hauling enginer⇒Dryer⇒Winder

  • Full detaied of specifcations:



Material

PE,EVA,TPR,PP,and other granule



Working width

1100--2500mm max



Thickness range

0.015mm to 0.1mm



Screw Dia. and L/D

Φ90---120×35:1 X1
T die width 1400---2800mm
Roller surface length 1400--2800mm
Winding Diameter Φ500
Power supply Three Phase 480V( ±10% )60hz, Single Phase 120V 60Hz 3P,480V( ±10% ) 60Hz, Single phase, 120V 60Hz
Mechanical speed: 30-100m/min
Extrusion capacity(Maximum) 80~180kg/h(varies with material)



Installation power

About 90--180kw ( actual consumption is 40%-50% of total

installation power)

Installation space

L=12M; W=4.5m; H=3.5m

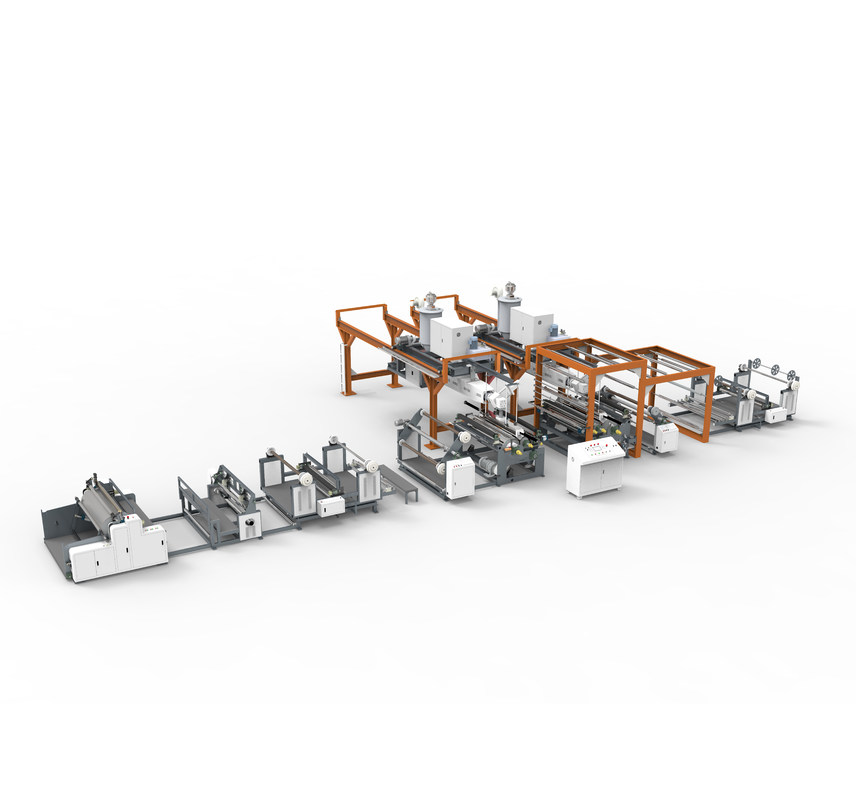

  • Overal view of the production line



    This unit is made of high-quality of PVC resin powder, melted and extruded at high temperature, formed into loops

and metled and extruded at high tempeature, formed into loops and melted on the PVC film. It is refined after several

steps such as cooling, cutting and trimming inspection. The formation of the foam layer from the upper silk to the bottom,

and the completion of the composite at one time, the soft spinner layer feels comfortable and corrosion-resistant. Changing

different  colours can produce mats of different designs, it has the chacrateristics o high degree of automation, stable product

quality and high efficiency.



Scene of assmebly workshop



Extrusion Coating Line For Sheet Film On PP Woven Fabric 0Extrusion Coating Line For Sheet Film On PP Woven Fabric 1



Extrusion Coating Line For Sheet Film On PP Woven Fabric 2



Extrusion Coating Line For Sheet Film On PP Woven Fabric 3

  •
  • Showcase of the assmebly workshop

Extrusion Coating Line For Sheet Film On PP Woven Fabric 4

  • Aplication of the products

Extrusion Coating Line For Sheet Film On PP Woven Fabric 0



  • Packing & Loading Details (or customized packing instruction)

1. Simply wrapped by the blanket first and the tight it by the cling stretch film.

2. Export standard are supplied with well packed by plywood cartoon or inron cartoon. We can make the packages

     according to customer's request.





Extrusion Coating Line For Sheet Film On PP Woven Fabric 6

Extrusion Coating Line For Sheet Film On PP Woven Fabric 7



  • Briefing about the company

Changzhou Da Li Plastic Machinery Co., Ltd.



     Changzhou Xin Da Li Plastic Machinery Co., Ltd. is a subsidiary of Changzhou Da Li Plastic Machinery Co., Ltd.,

located in Changzhou Wujin Science and Technology Industrial Park, was established in March 2015 with a registered

capital of 10.8 million yuan, covering an area of over 10,000 square feet. We provide our clients with all kinds of plastic

machinery products and technical services.





Extrusion Coating Line For Sheet Film On PP Woven Fabric 8

Certification

Extrusion Coating Line For Sheet Film On PP Woven Fabric 9



Scenarions of busineess negotiation



Extrusion Coating Line For Sheet Film On PP Woven Fabric 10

Extrusion Coating Line For Sheet Film On PP Woven Fabric 11



Our Client representatives:



Extrusion Coating Line For Sheet Film On PP Woven Fabric 12

Extrusion Coating Line For Sheet Film On PP Woven Fabric 13

Our Services

One station service to make sure our customer get ancillary equipments and good service.

(1) Professional advice and rich experience help to choose machine.

(2) Warranty time: All machines are guaranteed for one year.

(3) Before the dispatch the equipment, we will conduct the commission of the machine and invite the client representative join us to witness it.

      Once the machine reached the site of the clients, we will send our technicals to mantle up and commisson the machine, and train the local

      employee.

(4)Any problem: If you have any questions or any demands, we will reply you within 24 hours inquiry.

(5) Additives: installation book, Manual book, tool box will be sent with machine.

Product Quality

All products are guaranteed for one year, if any problems happen in guarantee period, our company will maintain for free.

Technical Service

We can provide design, installation and debugging services or remote maintenance teaching.

Delivery The Cargo To Nearest Port

We will arrange the shipment and delivery the cargo to your nearest port, save time and cost.

Detail Product Information

Provide picture, video, instruction and product brochure.

Reply Timely

24 hours hot line ,we will reply email within 12 hours.



FAQ

1. What about your machine quality?
Our factory has more than 22 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate;

already exported to many countries and areas; already got customer’s good reputation.
2. What about your machine price?
Anytime we will garanteen quality first, no matter price is good or not for us. Quality is first, on the top quality basis, of coursse you will get r

easonable and satisfied price!

3.  What about the delivey date?

Due to the non-standard size machine, we need to book all the relative parts according to the requirement of the clients, the delivery date would

be 1-- 3 moths accordingly.
3. How can you ensure the machines' quality after we put the order?
Before the delivery, we will send you machines' pictures and videos, or you can come to our factory to make the quality checking by yourself,

or by the third party inspection organization that contacted by your side.
