Product Details
Place of Origin: China
Brand Name: DaLi
Certification: CE
Model Number: DL-1400--2800 plastics laminating machine
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: 9000--160000 USD Per Set
Packaging Details: Regular Packing with blanket and stretch film or customized requirment package !
Delivery Time: 2-3 months
Payment Terms: T/T
Supply Ability: 5 sets per month
Name: |
PE/PP Plastics Laminating Machine |
Plastic Processed: |
LLDPE/LDPE/POE/EVA/Elastomer/Polythylene |
Application: |
Sheet/ Film |
Material: |
Granule |
Voltage: |
380V 3P/50HZ, It Can Be Customized |
Power(w): |
100--220 KW |
Screw Design: |
Single Screw Extruder |
Certification: |
CE |
Usage: |
Laminating On The Substrates(base Fabric, Soft Paper)) |
Thickness: |
0.015mm--0.1mm |
Weight: |
15T |
Dimension(l*w*h): |
12mx4.5mx3.5m |
Output: |
1.5T--4T/24 Hours |
Name: |
PE/PP Plastics Laminating Machine |
Plastic Processed: |
LLDPE/LDPE/POE/EVA/Elastomer/Polythylene |
Application: |
Sheet/ Film |
Material: |
Granule |
Voltage: |
380V 3P/50HZ, It Can Be Customized |
Power(w): |
100--220 KW |
Screw Design: |
Single Screw Extruder |
Certification: |
CE |
Usage: |
Laminating On The Substrates(base Fabric, Soft Paper)) |
Thickness: |
0.015mm--0.1mm |
Weight: |
15T |
Dimension(l*w*h): |
12mx4.5mx3.5m |
Output: |
1.5T--4T/24 Hours |
Why we produce three-layer pipe instead of single layer:
1. Reduce the production cost. Ususally middle pipe layer will use recycled material, it will reduce your raw material cost, and will not affect the pipe quality.
2. Increase the pipe toughness. Some customer will use glass fiber material in the middle layer, it will be increase the pipe toughness.
The production line adopts cast film process to heat and extrude PE,EVA,TPR,PP,and other material,coat on the substrates(base fabric),calender and cool,finally take up in rolls.
The machine can be manufactured according to customer’s requirement.It can be designed into computer automatic control,with vector frequency converter,PLC integrated control,human friendly interface and touch screen displayer.
Usage:suitable for laminating a variety of non-woven fabrics,paper,woven fabrics,mesh,foam,aluminium foil,top cover for car,carpet,printed films and so on in single layer or multilayers.
|
Material |
PE,EVA,LLDPE,LDPE, PP and other granule |
|
Working width |
1100--2500mm max |
|
Thickness range |
0.015mm to 0.1mm |
|
Screw Dia. and L/D |
Φ90---120×35:1 X1 |
| T die width | 1400---2800mm |
| Roller surface length | 1400--2800mm |
| Winding Diameter | Φ500 |
| Power supply | Three Phase 480V( ±10% )60hz, Single Phase 120V 60Hz 3P,480V( ±10% ) 60Hz, Single phase, 120V 60Hz |
| Mechanical speed: | 30-100m/min |
| Extrusion capacity(Maximum) | 80~180kg/h(varies with material) |
|
Installation power |
About 90--180kw ( actual consumption is 40%-50% of total installation power) |
| Installation space |
L=12M; W=4.5m; H=3.5m
|
Unwinding ⇒Extrusion ⇒Laminating⇒Trimming⇒Pulling⇒Slitting or Rolling

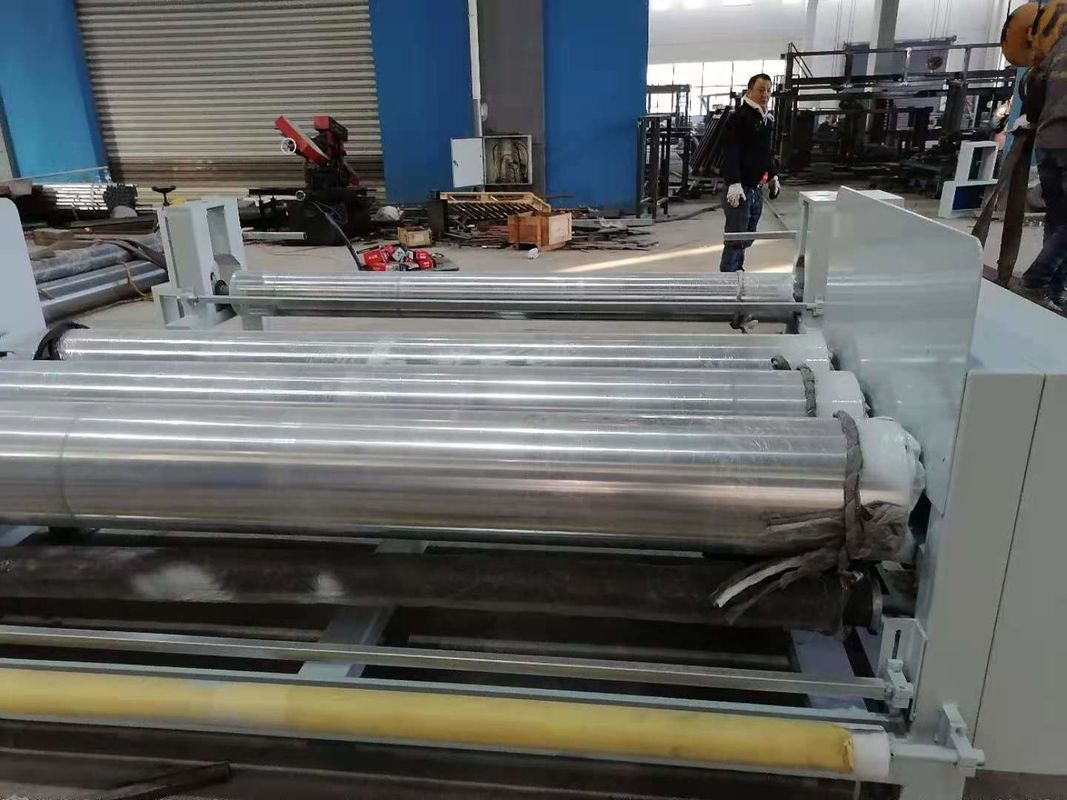

Scene of assmebly workshop
