Paper Butyl Rubber Tape Extrusion Coating Machine Extrusion Lamination Plant

Product Details

Place of Origin: China

Brand Name: DaLi

Certification: CE

Model Number: DL-1400--2800 plastics laminating machine

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: 9000--160000 USD Per Set

Packaging Details: Regular Packing with blanket and stretch film or customized requirment package !

Delivery Time: 2-3 months

Payment Terms: T/T

Supply Ability: 5 sets per month

Get Best Price
Highlight:

butyl rubber tape extrusion coating machine

,

paper extrusion coating machine

,

butyl rubber tape extrusion lamination

Name:
PE/PP Plastics Laminating Machine
Plastic Processed:
LLDPE/LDPE/POE/EVA/Elastomer/Polythylene
Application:
Sheet/ Film
Material:
Granule
Voltage:
380V 3P/50HZ, It Can Be Customized
Power(w):
100--220 KW
Screw Design:
Single Screw Extruder
Certification:
CE
Usage:
Laminating On The Substrates(base Fabric, Soft Paper))
Thickness:
0.015mm--0.1mm
Weight:
15T
Dimension(l*w*h):
12mx4.5mx3.5m
Output:
1.5T--4T/24 Hours
Name:
PE/PP Plastics Laminating Machine
Plastic Processed:
LLDPE/LDPE/POE/EVA/Elastomer/Polythylene
Application:
Sheet/ Film
Material:
Granule
Voltage:
380V 3P/50HZ, It Can Be Customized
Power(w):
100--220 KW
Screw Design:
Single Screw Extruder
Certification:
CE
Usage:
Laminating On The Substrates(base Fabric, Soft Paper))
Thickness:
0.015mm--0.1mm
Weight:
15T
Dimension(l*w*h):
12mx4.5mx3.5m
Output:
1.5T--4T/24 Hours
Paper Butyl Rubber Tape Extrusion Coating Machine Extrusion Lamination Plant

Plastics PE/PP laminating machine; woven fabric laiminating machine

Plastics lamingting machine (Model DALI 1400--2800)



Plastic Pipe Extruder/Plastic Extruders:

Different types of extruders With different sorts of molds and auxiliary machines,



it can produce all sorts of PVC plastic pipe material, profiled material, plate material, sliced material, bar material and granulation.



It can also extrude PP.PE pipe at high speed by changing special barrel.



Computer control or conventional control is optional.



According to customer's requirements, most reasonable screw can be made so as to achieve best plasticity state and material quality.



The screw is made by high precision special digital screw miller; extruding property can be highly harmonized.



It has firstly introduced advanced technique of producing screws with variable pitch and depth, so that the material can be more softly sheared and cut.



The distribution box is specially designed, pull force bearing is fully imported, and the drive life span can be prolonged.



It can bear larger extruding pressure.

1. It is a high-tech enterprise which is specialized in research, manufacture and marketing plastic extrusion lines,plastic production line.

  • Full detaied of specifcations:



Material

PE,EVA,LLDPE,LDPE, PP and other granule



Working width

1100--2500mm max



Thickness range

0.015mm to 0.1mm



Screw Dia. and L/D

Φ90---120×35:1 X1
T die width 1400---2800mm
Roller surface length 1400--2800mm
Winding Diameter Φ500
Power supply Three Phase 480V( ±10% )60hz, Single Phase 120V 60Hz 3P,480V( ±10% ) 60Hz, Single phase, 120V 60Hz
Mechanical speed: 30-100m/min
Extrusion capacity(Maximum) 80~180kg/h(varies with material)



Installation power

About 90--180kw ( actual consumption is 40%-50% of total

installation power)

Installation space

L=12M; W=4.5m; H=3.5m





  • Processing flow:

Unwinding ⇒Extrusion ⇒Laminating⇒Trimming⇒Pulling⇒Slitting or Rolling



Scene of assmebly workshop



Paper Butyl Rubber Tape Extrusion Coating Machine Extrusion Lamination Plant 0

Paper Butyl Rubber Tape Extrusion Coating Machine Extrusion Lamination Plant 1

Paper Butyl Rubber Tape Extrusion Coating Machine Extrusion Lamination Plant 2



Paper Butyl Rubber Tape Extrusion Coating Machine Extrusion Lamination Plant 3

  •
  • Showcase of the assmebly workshop

Paper Butyl Rubber Tape Extrusion Coating Machine Extrusion Lamination Plant 4

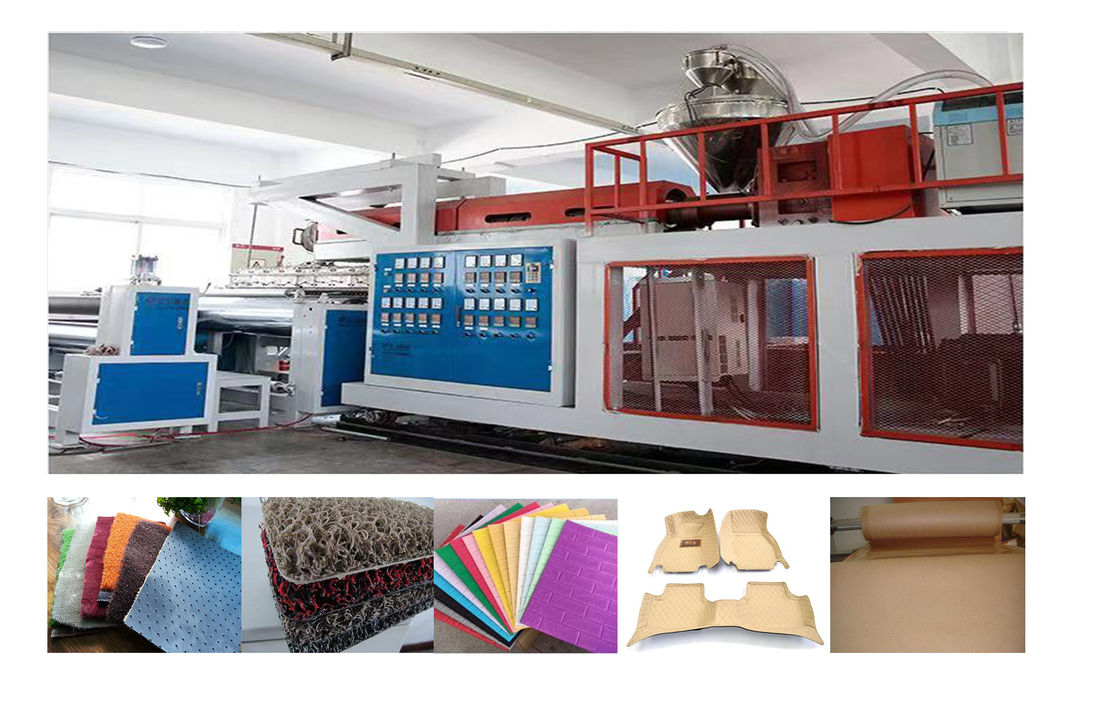

  • Aplication of the products

Paper Butyl Rubber Tape Extrusion Coating Machine Extrusion Lamination Plant 5

Paper Butyl Rubber Tape Extrusion Coating Machine Extrusion Lamination Plant 6

  • Packing & Loading Details (or customized packing instruction)

1. Simply wrapped by the blanket first and the tight it by the cling stretch film.

2. Export standard are supplied with well packed by plywood cartoon or inron cartoon. We can make the packages

     according to customer's request.





Paper Butyl Rubber Tape Extrusion Coating Machine Extrusion Lamination Plant 7

Paper Butyl Rubber Tape Extrusion Coating Machine Extrusion Lamination Plant 8



  • Briefing about the company

Changzhou Da Li Plastic Machinery Co., Ltd.



     Changzhou Xin Da Li Plastic Machinery Co., Ltd. is a subsidiary of Changzhou Da Li Plastic Machinery Co., Ltd.,

located in Changzhou Wujin Science and Technology Industrial Park, was established in March 2015 with a registered

capital of 10.8 million yuan, covering an area of over 10,000 square feet. We provide our clients with all kinds of plastic

machinery products and technical services.





Paper Butyl Rubber Tape Extrusion Coating Machine Extrusion Lamination Plant 9

Certification

Paper Butyl Rubber Tape Extrusion Coating Machine Extrusion Lamination Plant 10



Scenarions of busineess negotiation



Paper Butyl Rubber Tape Extrusion Coating Machine Extrusion Lamination Plant 11

Paper Butyl Rubber Tape Extrusion Coating Machine Extrusion Lamination Plant 12



Our Client representatives:



Paper Butyl Rubber Tape Extrusion Coating Machine Extrusion Lamination Plant 13

Paper Butyl Rubber Tape Extrusion Coating Machine Extrusion Lamination Plant 14

Our Services

One station service to make sure our customer get ancillary equipments and good service.

(1) Professional advice and rich experience help to choose machine.

(2) Warranty time: All machines are guaranteed for one year.

(3) Before the dispatch the equipment, we will conduct the commission of the machine and invite the client representative join us to witness it.

      Once the machine reached the site of the clients, we will send our technicals to mantle up and commisson the machine, and train the local

      employee.

(4)Any problem: If you have any questions or any demands, we will reply you within 24 hours inquiry.

(5) Additives: installation book, Manual book, tool box will be sent with machine.

Product Quality

All products are guaranteed for one year, if any problems happen in guarantee period, our company will maintain for free.

Technical Service

We can provide design, installation and debugging services or remote maintenance teaching.

Delivery The Cargo To Nearest Port

We will arrange the shipment and delivery the cargo to your nearest port, save time and cost.

Detail Product Information

Provide picture, video, instruction and product brochure.

Reply Timely

24 hours hot line ,we will reply email within 12 hours.



FAQ

1. What about your machine quality?
Our factory has more than 22 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate;

already exported to many countries and areas; already got customer’s good reputation.
2. What about your machine price?
Anytime we will garanteen quality first, no matter price is good or not for us. Quality is first, on the top quality basis, of coursse you will get r

easonable and satisfied price!

3.  What about the delivey date?

Due to the non-standard size machine, we need to book all the relative parts according to the requirement of the clients, the delivery date would

be 1-- 3 moths accordingly.
3. How can you ensure the machines' quality after we put the order?
Before the delivery, we will send you machines' pictures and videos, or you can come to our factory to make the quality checking by yourself,

or by the third party inspection organization that contacted by your side.
