Bopp Tpu Pvc Film Lamination Machine

Bopp Tpu Pvc Film Lamination Machine
Bopp Tpu Pvc Film Lamination Machine

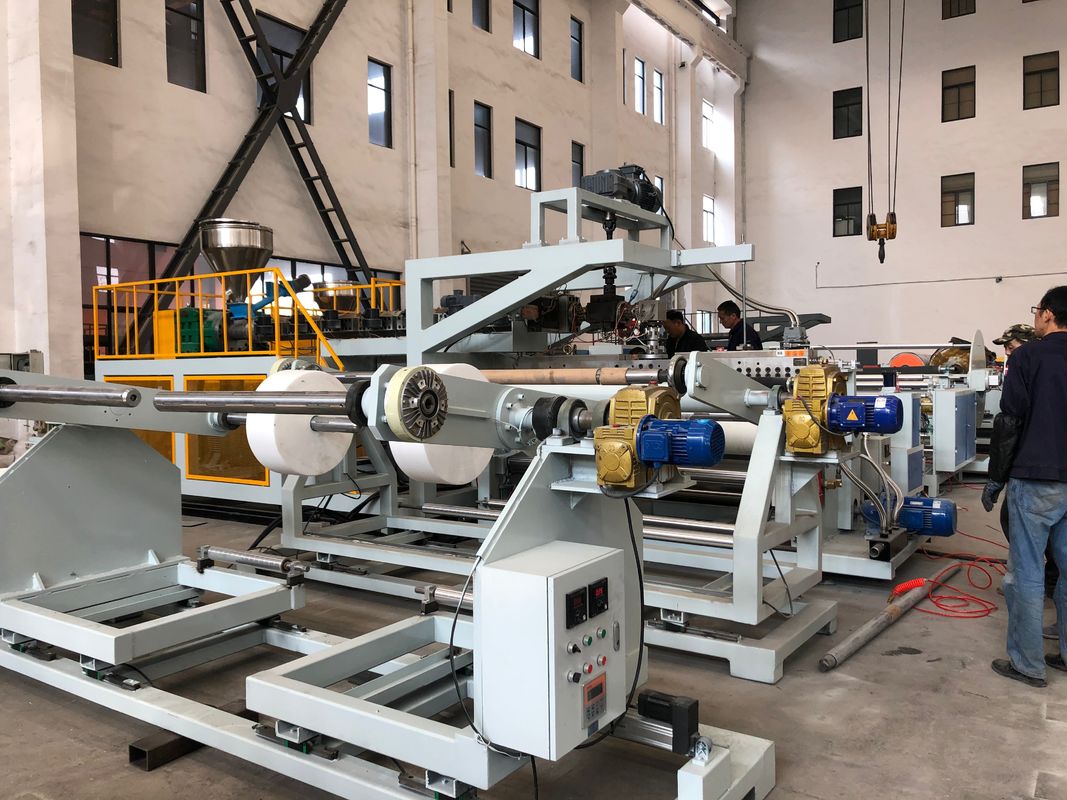

Large Image :  Bopp Tpu Pvc Film Lamination Machine

Product Details:
Place of Origin: China
Brand Name: DaLi
Certification: CE
Model Number: DL-1400--2800 plastics laminating machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 9000--160000 USD Per Set
Packaging Details: Regular Packing with blanket and stretch film or customized requirment package !
Delivery Time: 2--3month
Payment Terms: T/T
Supply Ability: 20 sets per month

Bopp Tpu Pvc Film Lamination Machine

Name: PE/PP Plastics Laminating Machine Plastic Processed: LLDPE/LDPE/POE/EVA/Elastomer/Polythylene
Application: Sheet/ Film Material: Granule
Voltage: 380V 3P/50HZ, It Can Be Customized Power(w): 100--220 KW
Screw Design: Single Crew Extruder Certification: CE
Usage: Laminating On The Substrates(base Fabric, Soft Paper)) Thickness: 0.015mm--0.1mm
Weight: 15T Dimension(l*w*h): 12mx4.5mx3.5m
Output: 1.5T--4T/24 Hours
High Light:

pvc film lamination machine


tpu film lamination machine


bopp film lamination machine

woven fabric laiminating machine, paper laminating machine;multiple-layer laminating

Plastics lamingting machine (Model DALI 1400--2800)

  • Overal view of the production line

The production line adopts cast film process to heat and extrude PE,EVA,TPR,PP,and other material,coat on the substrates(base fabric),calender and cool,finally take up in rolls.

The machine can be manufactured according to customer’s requirement.It can be designed into computer automatic control,with vector frequency converter,PLC integrated control,human friendly interface and touch screen displayer.

Usage:suitable for laminating a variety of non-woven fabrics,paper,woven fabrics,mesh,foam,aluminium foil,top cover for car,carpet,printed films and so on in single layer or multilayers.

  • Full detaied of specifcations:



PE,EVA,LLDPE,LDPE, PP and other granule


Working width

1100--2500mm max


Thickness range

0.015mm to 0.1mm


Screw Dia. and L/D

Φ90---120×35:1 X1
T die width 1400---2800mm
Roller surface length 1400--2800mm
Winding Diameter Φ500
Power supply Three Phase 480V( ±10% )60hz, Single Phase 120V 60Hz 3P,480V( ±10% ) 60Hz, Single phase, 120V 60Hz
Mechanical speed: 30-100m/min
Extrusion capacity(Maximum) 80~180kg/h(varies with material)


Installation power

About 90--180kw ( actual consumption is 40%-50% of total

installation power)

Installation space

L=12M; W=4.5m; H=3.5m



Features Specifications:


1. Model SJZ series conical twin screw extruder is a kind of special equipment for extruding PVC compound. With different kinds of molds and auxiliary machines, it can produce all sorts of PVC plastic pipe, profile, plate material, sheet material, bar material and granulation.


2. The conical twin screws have applied oil cooling system. Barrel is cooled by special wind cooling system.


3. The conical twin screw extruder system has applied special computer control. According to customers requirements, most reasonable structure of conical twin screw can be made so as to achieve best plasticity performance and material quality.


4. The conical twin screw is made by high precision special digital screw miller; extruding property can be highly harmonized. It has firstly introduced advanced technique of producing screw with variable pitch and depth, so that the material can be more softly sheared and cut.


5. The distribution box is specially designed, pull force bearing is fully imported, and the drive life span can be prolonged. It can bear larger extruding pressure.


6. The electrical system has mainly applied imported parts, it has multiple alarm system, and there are few problems which can be easily eliminated. The cooling system has applied special design, heat emission area is enlarged, the cooling is rapid, and temperature control tolerance can be ± 1degree.

  • Processing flow:

Unwinding ⇒Extrusion ⇒Laminating⇒Trimming⇒Pulling⇒Slitting or Rolling


Scene of assmebly workshop


Bopp Tpu Pvc Film Lamination Machine 0

Bopp Tpu Pvc Film Lamination Machine 1

Bopp Tpu Pvc Film Lamination Machine 2


Bopp Tpu Pvc Film Lamination Machine 3

  • Showcase of the assmebly workshop

Bopp Tpu Pvc Film Lamination Machine 4



  • Aplication of the products

Bopp Tpu Pvc Film Lamination Machine 5

Bopp Tpu Pvc Film Lamination Machine 6

  • Packing & Loading Details (or customized packing instruction)

1. Simply wrapped by the blanket first and the tight it by the cling stretch film.

2. Export standard are supplied with well packed by plywood cartoon or inron cartoon. We can make the packages

     according to customer's request.



Bopp Tpu Pvc Film Lamination Machine 7

Bopp Tpu Pvc Film Lamination Machine 8


  • Briefing about the company

Changzhou Da Li Plastic Machinery Co., Ltd.


     Changzhou Xin Da Li Plastic Machinery Co., Ltd. is a subsidiary of Changzhou Da Li Plastic Machinery Co., Ltd.,

located in Changzhou Wujin Science and Technology Industrial Park, was established in March 2015 with a registered

capital of 10.8 million yuan, covering an area of over 10,000 square feet. We provide our clients with all kinds of plastic

machinery products and technical services.



Bopp Tpu Pvc Film Lamination Machine 9


Bopp Tpu Pvc Film Lamination Machine 10


Scenarions of busineess negotiation


Bopp Tpu Pvc Film Lamination Machine 11

Bopp Tpu Pvc Film Lamination Machine 12


Our Client representatives:


Bopp Tpu Pvc Film Lamination Machine 13

Bopp Tpu Pvc Film Lamination Machine 14

Our Services

One station service to make sure our customer get ancillary equipments and good service.

(1) Professional advice and rich experience help to choose machine.

(2) Warranty time: All machines are guaranteed for one year.

(3) Before the dispatch the equipment, we will conduct the commission of the machine and invite the client representative join us to witness it.

      Once the machine reached the site of the clients, we will send our technicals to mantle up and commisson the machine, and train the local


(4)Any problem: If you have any questions or any demands, we will reply you within 24 hours inquiry.

(5) Additives: installation book, Manual book, tool box will be sent with machine.

Product Quality

All products are guaranteed for one year, if any problems happen in guarantee period, our company will maintain for free.

Technical Service

We can provide design, installation and debugging services or remote maintenance teaching.

Delivery The Cargo To Nearest Port

We will arrange the shipment and delivery the cargo to your nearest port, save time and cost.

Detail Product Information

Provide picture, video, instruction and product brochure.

Reply Timely

24 hours hot line ,we will reply email within 12 hours.



1. What about your machine quality?
Our factory has more than 22 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate;

already exported to many countries and areas; already got customer’s good reputation.
2. What about your machine price?
Anytime we will garanteen quality first, no matter price is good or not for us. Quality is first, on the top quality basis, of coursse you will get r

easonable and satisfied price!

3.  What about the delivey date?

Due to the non-standard size machine, we need to book all the relative parts according to the requirement of the clients, the delivery date would

be 1-- 3 moths accordingly.
3. How can you ensure the machines' quality after we put the order?
Before the delivery, we will send you machines' pictures and videos, or you can come to our factory to make the quality checking by yourself,

or by the third party inspection organization that contacted by your side.
