Product Details
Place of Origin: China
Brand Name: DaLi
Certification: CE
Model Number: DL-2400
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: 150000--250000 USD Per Set
Packaging Details: Regular Packing with blanket and stretch film or customized requirment package !
Delivery Time: 1-3 months
Payment Terms: T/T
Supply Ability: 5 sets per month
Name: |
Drainge Board Production Lline |
Raw Material: |
HDPE/LDPE Granule |
Thickness Of The Product: |
0.3--2mm |
Width Of Product: |
Flexible Width 1000mm--4300mm |
Install Power: |
280--800kw |
Weight Of Production: |
8T--18T |
Dimension Of Production Line: |
12mX6.5mX4.5m |
After Sale Service: |
Provide On Line Service |
Name: |
Drainge Board Production Lline |
Raw Material: |
HDPE/LDPE Granule |
Thickness Of The Product: |
0.3--2mm |
Width Of Product: |
Flexible Width 1000mm--4300mm |
Install Power: |
280--800kw |
Weight Of Production: |
8T--18T |
Dimension Of Production Line: |
12mX6.5mX4.5m |
After Sale Service: |
Provide On Line Service |
HDPE drainage sheet production line;dimple geomembrane drainage board
Drainage Board Production Line
HDPE drainage sheet production line;dimple geomembrane drainage board
plastic sheet production line is designed and manufactured on the basis of absorbing domestic and foreign advanced technology. It’s specially for the production of PP, PE and PS sheets. This production line consists of 120/30 single screw extruder, mold of machine head, three-roll calender, Conveying and Edge-cutting Device, traction device, electric controlling cabinet and other components. The equipment has the advantages of fully automation, stable working performance, high output and low cost. It’s your ideal choice to invest in plastic products.
Drainage Board is a dimple geomembrane, As a refractory building plastic made from HIPS and HDPE, it is widely used between building concrete layers and will last dissoluble for 100 years. It’s perfect used in building basement or top-floor forestation because of its high compressive strength and light weight.Used underneath the building bottom panel in insulation flat roof or basement, it is moisture-proof, draining and moisturizing because of the gap caused by its supporting spots and construction concrete.
Water can rapidly drain even if seepage happens cbecause the different sized supporting spots in the edge can work each other and form the slope.
Model and specification | DL-1300 | DL-2300 | DL-3300 | DL-4300 | Marks |
Max Width(mm) | 1000 | 2000 | 3000 | 4000 | |
Thickness Range(mm) | 0.35--20 | 0.35--2.0 | 0.35--2.0 | 0.35--2.0 | |
Liner Speed(m/m) | 1--6 | 1--6 | 1--6 | 1--6 | |
Total Power(KW) | 160 | 260 | 340 | 460 | |
Application Material | HDPE, MDPE, LDPE, LLDPE(can be 100% recycled material) | HDPE, MDPE, LDPE, LLDPE(can be 100% recycled material) | HDPE, MDPE, LDPE, LLDPE(can be 100% recycled material) | HDPE, MDPE, LDPE, LLDPE(can be 100% recycled material) | |
Dimension(LXWXH) | 16mX2.3mX2.7m | 16mX3.3mX2.7m | 16mX4.3mX2.7m | 16mX5.3mX2.7m |

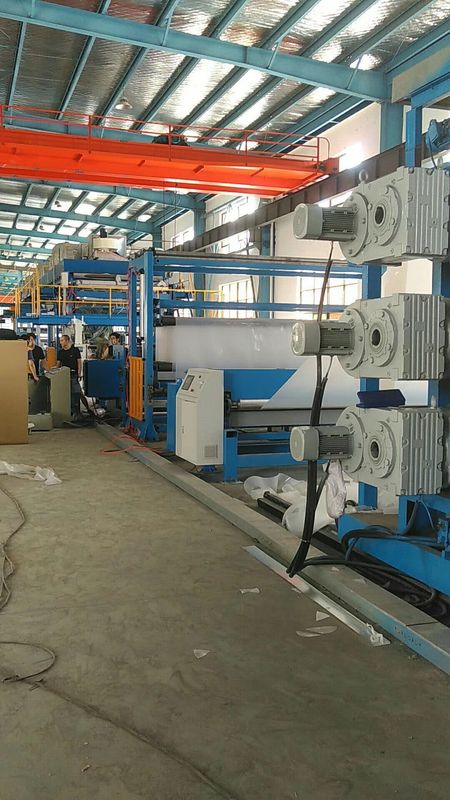

Scene of assmebly workshop
