Product Details:
|
Name: | Drainge Board Production Lline | Raw Material: | HDPE/LDPE Granule |
---|---|---|---|
Thickness Of The Product: | 0.3--2mm | Width Of Product: | Flexible Width 1000mm--4300mm |
Install Power: | 280--800kw | Weight Of Production: | 8T--18T |
Dimension Of Production Line: | 12mX6.5mX4.5m | After Sale Service: | Provide On Line Service |
High Light: | 4300mm Drainage Sheet Extrusion Line,High density polyethylene Drainage Sheet Extrusion,4300mm Drainage Sheet Extruder |
PVC edgebanding extrusion line HDPE drainage sheet production line;dimple geomembrane drainage board
Drainage Board Production Line
Model and specification | DL-1300 | DL-2300 | DL-3300 | DL-4300 |
Max Width(mm) | 1000 | 2000 | 3000 | 4000 |
Thickness Range(mm) | 0.35--20 | 0.35--2.0 | 0.35--2.0 | 0.35--2.0 |
Liner Speed(m/m) | 1--6 | 1--6 | 1--6 | 1--6 |
Total Power(KW) | 160 | 260 | 340 | 460 |
Application Material | HDPE, MDPE, LDPE, LLDPE(can be 100% recycled material) | HDPE, MDPE, LDPE, LLDPE(can be 100% recycled material) | HDPE, MDPE, LDPE, LLDPE(can be 100% recycled material) | HDPE, MDPE, LDPE, LLDPE(can be 100% recycled material) |
Dimension(LXWXH) | 16mX2.3mX2.7m | 16mX3.3mX2.7m | 16mX4.3mX2.7m | 16mX5.3mX2.7m |
Drainage Board is a dimple geomembrane, which produced by extruding plastic sheet into dimple shape. These dimples, in spatial structure with certain height, can resist long term high pressure without deformation. One the top of the dimples, there is filtration geotextile to make sure the drainage channel running well without any block for any article, for example, filling particles or concrete.
Drainage sheet products are widely used in landscape engineering, construction engineering, traffic engineering, municipal engineering, decoration engineering and other fields.

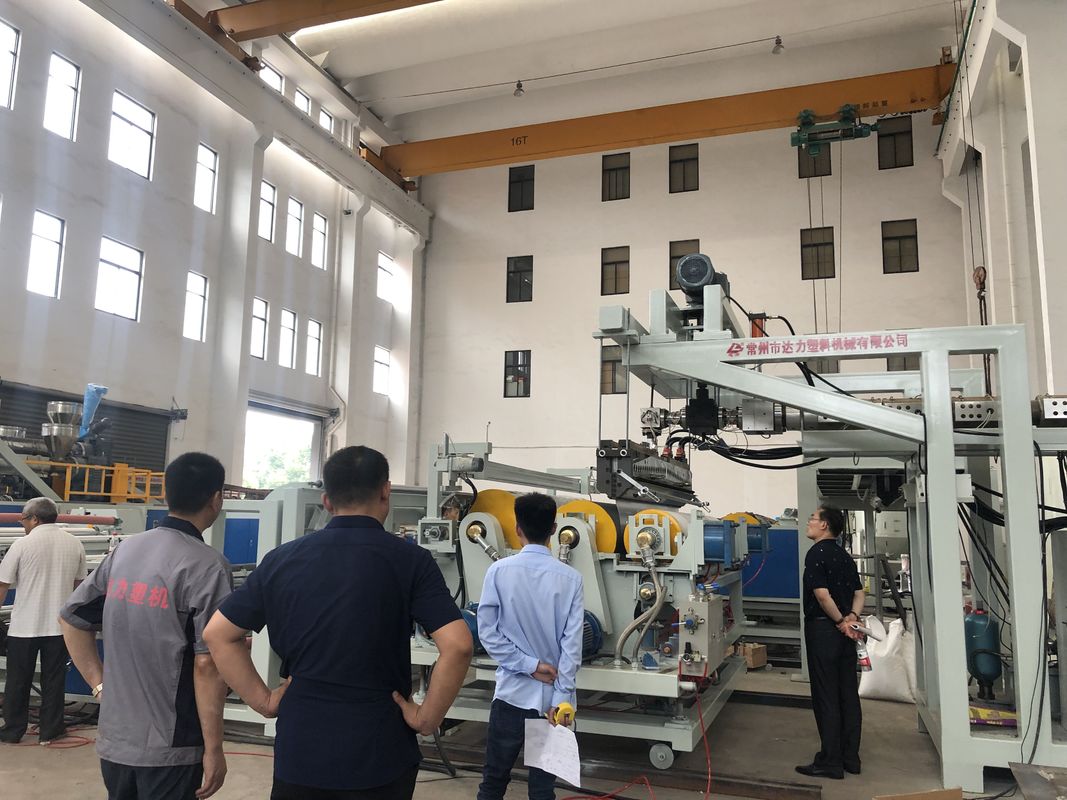

Scene of assmebly workshop
