Product Details
Place of Origin: China
Brand Name: DaLi
Certification: CE
Model Number: DL-2300
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: 100000--180000 USD Per Set
Packaging Details: Regular Packing with blanket and stretch film or customized requirment package !
Delivery Time: 2-3 months
Payment Terms: T/T
Supply Ability: 5 sets per month
Name: |
Car Mat /floor Mat Laminating/Coating Machine |
Plastic Processed: |
LLDPE/LDPE/POE/ |
Application: |
Sheet/ Film |
Material: |
Granule |
Voltage: |
380V 3P/50HZ |
Power(w): |
120--220 KW |
Screw Design: |
Single Screw Extruder |
Certification: |
CE |
Usage: |
Laminating On The Substrates |
Thickness: |
0.015mm--0.1mm |
Weight: |
18T |
Dimension(l*w*h): |
12.5mx4.5mx3.5m |
Output: |
2.5T--4T/24 Hours |
Name: |
Car Mat /floor Mat Laminating/Coating Machine |
Plastic Processed: |
LLDPE/LDPE/POE/ |
Application: |
Sheet/ Film |
Material: |
Granule |
Voltage: |
380V 3P/50HZ |
Power(w): |
120--220 KW |
Screw Design: |
Single Screw Extruder |
Certification: |
CE |
Usage: |
Laminating On The Substrates |
Thickness: |
0.015mm--0.1mm |
Weight: |
18T |
Dimension(l*w*h): |
12.5mx4.5mx3.5m |
Output: |
2.5T--4T/24 Hours |
This production line fully absorbs and combines with the laminating compound, and optimizes the design of products such as floor mats, foot pads, roof cloths, and carpets, with stable quality and powerful functions.
Surface of lamination can be textured according to customers’ requirement.
The final products can be used in a variety of car interior, household and so on.
Processing Flow:
Unwinding---Extrusion---Calandering---Trimming---Pulling---Rolling or Slitting
Material |
PE,EVA,TPR,PP,and other granule |
Working width |
1600--2500mm max |
Thickness range |
0.015mm to 0.1mm |
Screw Dia. and L/D |
Φ90---130×33:1 X1 |
T die width | 1600---2800mm |
Roller surface length | 1600--2800mm |
Winding Diameter | Φ600 |
Power supply | 3P,480V( ±10% ) 60Hz, Single phase, 120V 60Hz |
Mechanical speed: | 20-80m/min |
Extrusion capacity(Maximum) | 100~250kg/h(varies with material) |
Installation power |
About 120--160kw ( actual consumption is 40%-50% of total installation power) |
Installation space |
L=12.5M; W=4.5m; H=3.5m
|
Unwinding ⇒Extrusion ⇒Laminating⇒Trimming⇒Pulling⇒Slitting or Rolling

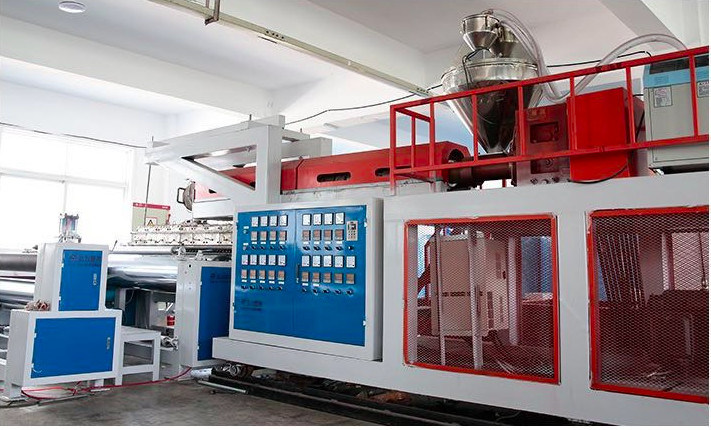

Scene of assmebly workshop
