Product Details:
|
Name: | Cast Film Extrusion Machine | Plastic Processed: | LLDPE/LDPE/POE/EVA/Elastomer/Polythylene |
---|---|---|---|
Application: | Sheet/ Film | Material: | Granule |
Voltage: | 380V 3P/50HZ, It Can Be Customized | Power(w): | 160KW |
Screw Design: | Single Crew Extruder | Certification: | CE |
Usage: | PE Film/CPE/TPE Film For Disposable Hand Glove | Thickness: | 0.015mm--0.1mm |
Weight: | 12.5T | Dimension(l*w*h): | 12mx4.5mx3.5m |
High Light: | 0.1mm Cast Film Extrusion Machine Manufacturers,0.1mm Cast Film Extrusion,polymer film casting equipments |
Using linear low density polyethylene(LLDPE), Low density polyethylene(LDPE), elastomeric material(POE) as well as a portion of
opeing agent as raw material for producing embossed film on machine equipped with embossed roller and necessary parts used for making disposable CPE/TPE gloves.
Material |
CPE/TPE |
Working width |
1800mm max |
Thickness range |
0.015mm to 0.1mm |
Screw Dia. and L/D |
Φ110×35:1 X 1 |
T die width | 2100mm |
Roller surface length | 2100mm |
Winding Diameter | Φ500 |
Power supply | Three Phase 380V( ±10% )50hz, Single Phase 220V 50Hz |
Mechanical speed: | 30-100m/min |
Extrusion capacity(Maximum) | 100~150kg/h(varies with material) |
Installation power |
About 160kw ( actual consumption is 40%-50% of total installation power) |
Installation space |
L=12M; W=4.5m; H=3.5m
|

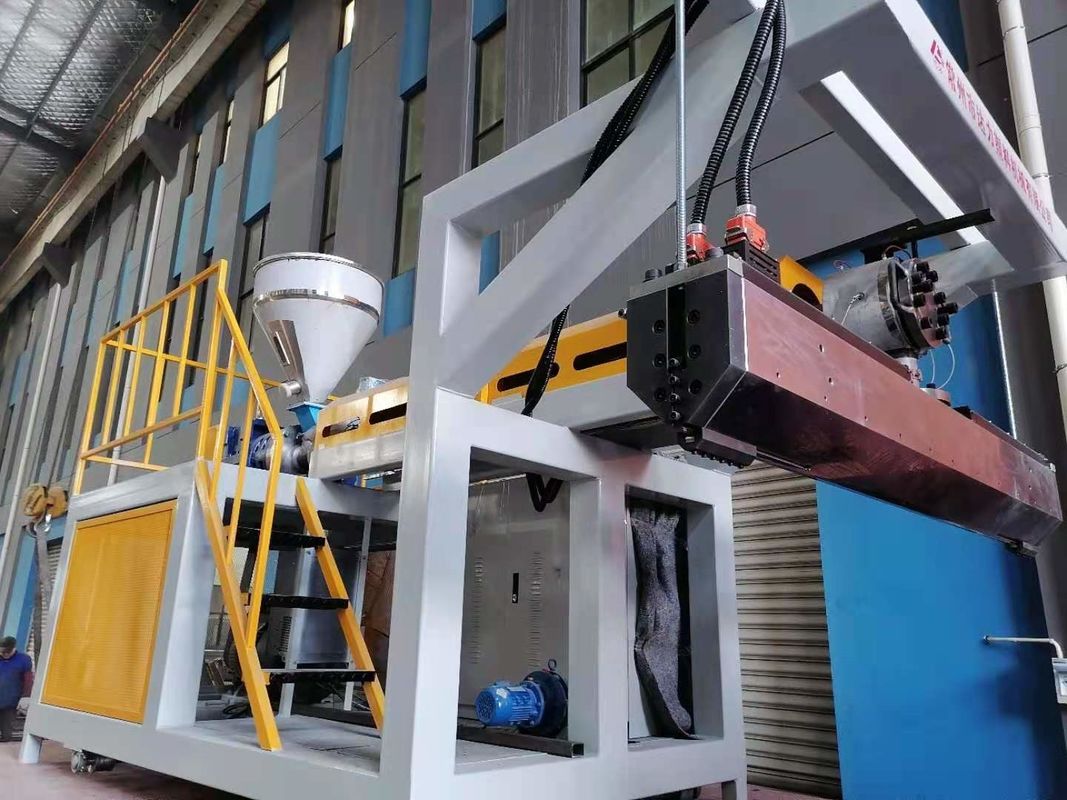

Scene of assmebly workshop
