          Product Details
Place of Origin: China
Brand Name: DaLi
Certification: CE
Model Number: DL-2100 cast film extrusion machine/ production line
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: 100000--180000 USD Per Set
Packaging Details: Regular Packing with blanket and stretch film or customized requirment package !
Delivery Time: 2-3 months
Payment Terms: T/T
Supply Ability: 5 sets per month
| Name: | Cast Film Extrusion Machine | Plastic Processed: | LLDPE/LDPE/POE/EVA/Elastomer/Polythylene | Application: | Sheet/ Film | Material: | Granule | Voltage: | 380V 3P/50HZ, It Can Be Customized | Power(w): | 140KW | Screw Design: | Single Screw Extruder | Certification: | CE | Usage: | PE Film/CPE/TPE Film For Disposable Hand Glove | Thickness: | 0.015mm--0.1mm | Weight: | 15T | Dimension(l*w*h): | 12mx4.5mx3.5m | Output: | 2T--3T/24 Hours | Diameter Of Extruder: | Φ90---Φ120×35:1 X1 |
| Name: | Cast Film Extrusion Machine |
| Plastic Processed: | LLDPE/LDPE/POE/EVA/Elastomer/Polythylene |
| Application: | Sheet/ Film |
| Material: | Granule |
| Voltage: | 380V 3P/50HZ, It Can Be Customized |
| Power(w): | 140KW |
| Screw Design: | Single Screw Extruder |
| Certification: | CE |
| Usage: | PE Film/CPE/TPE Film For Disposable Hand Glove |
| Thickness: | 0.015mm--0.1mm |
| Weight: | 15T |
| Dimension(l*w*h): | 12mx4.5mx3.5m |
| Output: | 2T--3T/24 Hours |
| Diameter Of Extruder: | Φ90---Φ120×35:1 X1 |

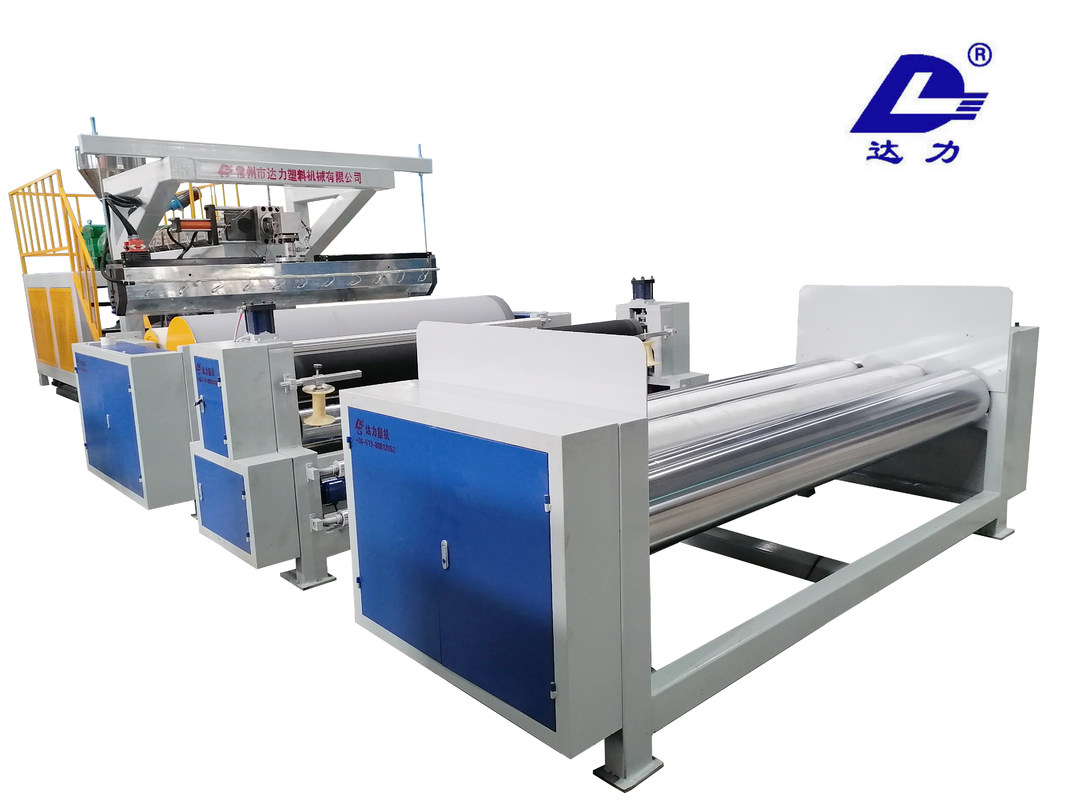

Adopt mono-layer or multi-layers cast embossed process . Cast film machine can produce flat film, embossed film, multi-layer, co-extruded film and many other film products.
Property: not hard and brittle in low tempreture,nor adhesive at high tempreture of 45C, with nice feel,light weight,innocuity nonirritant and no odor, less enviromental pollution after using.
|
 Material | CPE/TPE |
|
 Working width | 18000mm max |
|
 Thickness range | 0.015mm to 0.1mm |
|
 Screw Dia. and L/D | Φ110×35:1 X1 |
| T die width | 1800mm |
| Roller surface length | 1800mm |
| Winding Diameter | Φ500 |
| Power supply | Three Phase 380V( ±10% )50hz, Single Phase 220V 50Hz 3P |
| Mechanical speed: | 20-60m/min |
| Extrusion capacity(Maximum) | 80~120kg/h(varies with material) |
|
 Installation power | About 140kw ( actual consumption is 40%-50% of total installation power) |
| Installation space | L=12M; W=4.5m; H=3.5m
 |
Scene of assmebly workshop
