Product Details:
|
Name: | LLDPE Two Layers Co-extrusion Stretch Film/ Cling Film Machine | Layers Of Film: | Double Layer |
---|---|---|---|
Transparency: | Transparent | Material: | Granule |
Voltage: | 380V 3P/50HZ, It Can Be Customized | Power(w): | 130KW |
Screw Design: | Single Crew Extruder | Liner Speed: | 60--150m/s |
Max Extrusion: | 100-180KG/h | Thickness: | 0.001mm--0.05mm |
Width Of Film: | 1500mm | Dimension(l*w*h): | 12mx4mx3m |
Output: | 1.5T--3.5T/24 Hours | ||
High Light: | 1500mm ABC Cast Stretch Film Machine,1500mm Pallet Cast Stretch Film Machine,2 Layer cast stretch film line |
. Cast Stretch Film Machine Twin Screw Plastic Extruder is used for blowing plastic film with stretch, like pp stretch film, stretch wrapping film, cling film, etc. Which are widely used for packing liquid,industrial products,garments and textile and printing lamination etc.The cylinder and the screw stems of the extruder are made of high-quality alloy steel with optimum hardness and strong corrosion resistance after nitrogen treatment and precision finishing. The auxiliary machine has a platform working table for making operation easy and is equipped with dubble stabilizing ring.
Double-rolling and double-cutting coiling unit adopts torque motor to keep proper tension and make even and roll-changing easy.
Two-layer co-extrusion stretch film for DL-90/65---1500 Model
Material |
LDPE/LLDPE |
Working width |
1500mm max |
Thickness range |
0.012mm to 0.05mm |
Screw Dia. and L/D |
Φ65×30:1 X2;Φ90×30:1 X1 |
T die width | 1850mm |
Substrcture of Layer | Three layers ABC |
Actual comsumption of power(KW) | 70--90KW per hour |
Power supply | Three Phase 380V( ±10% )50hz, Single Phase 220V50Hz |
Mechanical speed: | 200m/min |
Extrusion capacity | 150~300kg/h(varies with material) |
Installation power(KW) |
About 180kw ( actual consumption is 40%-50% of total installation power) |
Installation space |
L=12.5M; W=5.5m; H=3.5m
|

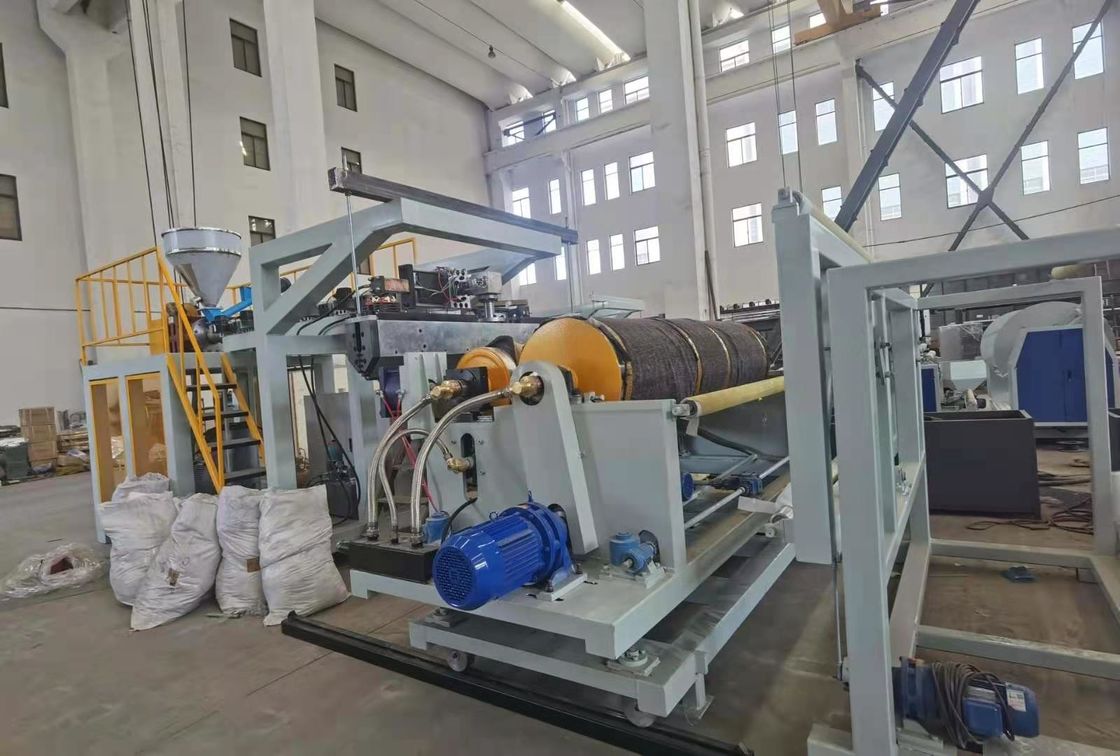

Scene of assmebly workshop
