Product Details:
|
Name: | Three-layer Co-extrusion Stretch Film Machine | Layers Of Film: | Three |
---|---|---|---|
Screw Speed: | 150 R/min | After Sale Service: | Video Technical Support, Field Installation, Commis |
Voltage: | 380V 3P/50HZ | Power(w): | 160KW |
Screw Design: | Triple Screw Extruder | Diameter Of Screw: | Φ90×33:1 X2;Φ110×33:1 X1 |
Max Extrusion: | 250-300KG/h | Thickness: | 0.001mm--0.05mm |
Width Of Film: | 2200mm | Dimension(l*w*h): | 7.5mx3mx3.4m |
Output: | 5T--7T/24 Hours | ||
High Light: | 2500mm hdpe cast film,2500mm Co Extrusion Cast Film,2500mm hdpe Film Casting Machine |
. Cast Stretch Film Machine Triple Screw Plastic Extruder is the automatic All-in-one model which is designed according to the advanced technology from domestic and foreign markets, with auto cutting, auto laps changing apparatus and auto PLC system..
Material |
LDPE/LLDPE |
Working width |
2200mm max |
Thickness range |
0.012mm to 0.05mm |
Screw Dia. and L/D |
Φ90×33:1 X2;Φ110×33:1 X1 |
T die width | 2500mm |
Substrcture of Layer | Three layers ABC |
Actual comsumption of power(KW) | 70 KW per hour |
Power supply | Three Phase 380V( ±10% )50hz, Single Phase 220V50Hz |
Mechanical speed: | 200m/min |
Extrusion capacity | 250~300kg/h(varies with material) |
Installation power(KW) |
About 160kw ( actual consumption is 40%-50% of total installation power) |
Installation space |
L=7.5M; W=3m; H=3.5m
|

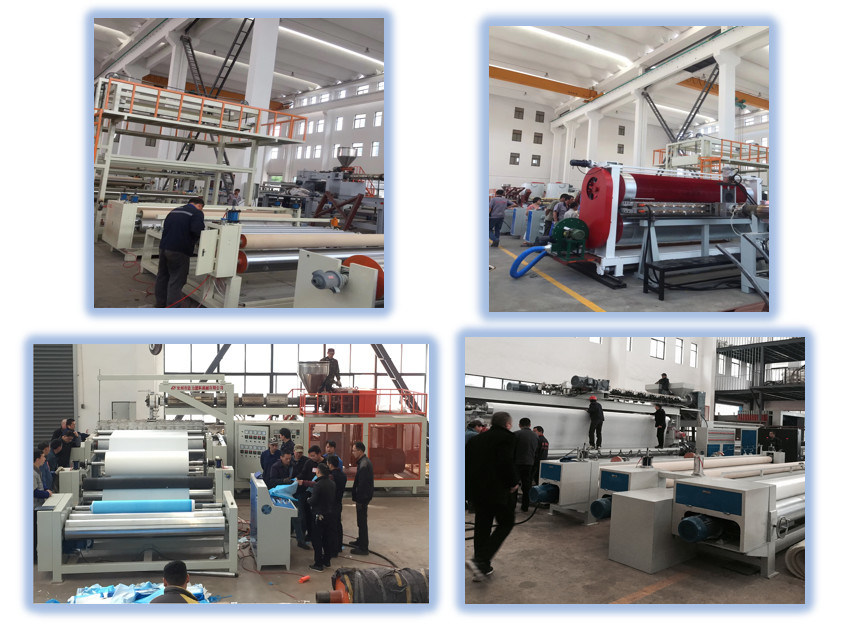

Scene of assmebly workshop
