0.8mm PP Non Woven Fabric Lamination Machine Extrusion Coating Lamination Line

Product Details

Place of Origin: China

Brand Name: DaLi

Certification: CE

Model Number: plastics laminating machine

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: 9000--160000 USD Per Set

Packaging Details: Regular Packing with blanket and stretch film or customized requirment package !

Delivery Time: 2-3 months

Payment Terms: T/T

Supply Ability: 5 sets per month

Get Best Price
Highlight:

0.8mm pp woven fabric lamination machine

,

0.8mm Non Woven Lamination Machinery

,

0.8mm textile lamination machine

Name:
PE/PP/EVA/TPR Plastics Laminating Machine
Applicable Industrial:
Manufacturing Plant
Voltage:
380V 3P/50Hz, It Can Be Customized
Place Of Origin:
Jiangsu Province,China
Screw Design:
Single Screw Extruder
Certification:
CE
Usage:
Textile
Automatic Grade:
Semi-auotomatic/ Full Automatic
Thickness Of Layer:
0.01--0.8
Dimension(l*w*h):
12mx4.5mx3.5m
Output:
1.5T--4T/24 Hours
Laminating Layers:
Two Layers. Three Layers, Multiple Layers
Name:
PE/PP/EVA/TPR Plastics Laminating Machine
Applicable Industrial:
Manufacturing Plant
Voltage:
380V 3P/50Hz, It Can Be Customized
Place Of Origin:
Jiangsu Province,China
Screw Design:
Single Screw Extruder
Certification:
CE
Usage:
Textile
Automatic Grade:
Semi-auotomatic/ Full Automatic
Thickness Of Layer:
0.01--0.8
Dimension(l*w*h):
12mx4.5mx3.5m
Output:
1.5T--4T/24 Hours
Laminating Layers:
Two Layers. Three Layers, Multiple Layers
0.8mm PP Non Woven Fabric Lamination Machine Extrusion Coating Lamination Line

industrial fileld PP.PE non-woven fabric, fabric laminating machine

Plastics lamingting machine

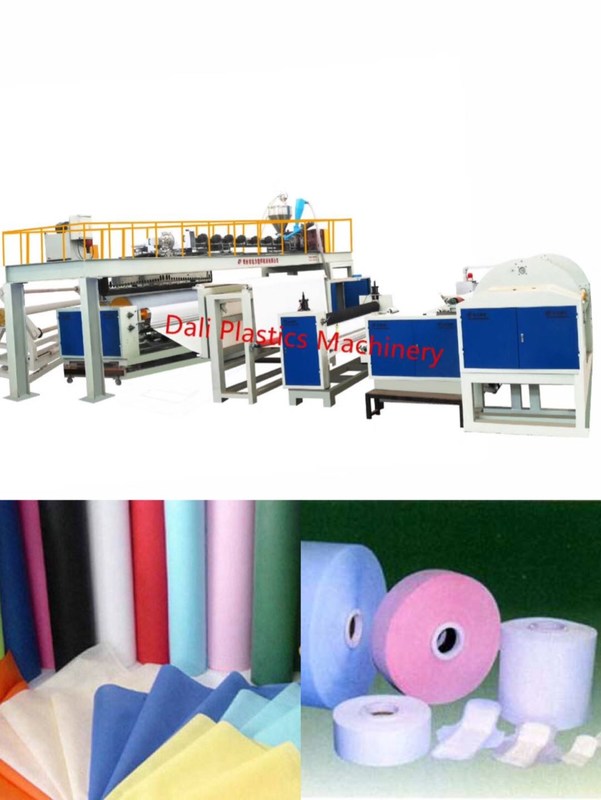

  • Overal view of the production line

     This Non woven fabric laminating machine making use of the good adhesive property of polypropylene & polyethylene at meltingstatus . the machine adheres and laminates paper or color-printed OPP & CPP film to Nonwoven fabric , The extruder with helical gear reducerf 20crmn Tialloy steel adopts automatic temperature-control system to ad just melting temperature , the screw and cylinderare made of 38CRMOALA alloy steel and donetreatment of nitrogenation . The double-die cando single or double-face coating , width of coating laminating can be regulated , andcontrol coating thickness and laminating speed , automaticall Automatic edge cutting , edge-blowing , cutting-off and winding devices are applied.

  • Full detaied of specifcations:



Material

PE,EVA,LLDPE,LDPE, PP and other granule



Working width

1100--2500mm max



Thickness range

0.015mm to 0.1mm



Screw Dia. and L/D

Φ90---120×35:1 X1
T die width 1400---2800mm
Roller surface length 1400--2800mm
Winding Diameter Φ500
Power supply Three Phase 480V( ±10% )60hz, Single Phase 120V 60Hz 3P,480V( ±10% ) 60Hz, Single phase, 120V 60Hz
Mechanical speed: 30-100m/min
Extrusion capacity(Maximum) 80~180kg/h(varies with material)



Installation power

About 90--180kw ( actual consumption is 40%-50% of total

installation power)

Installation space

L=12M; W=4.5m; H=3.5m





  • Processing flow:

Unwinding ⇒Extrusion ⇒Laminating⇒Trimming⇒Pulling⇒Slitting or Rolling



Scene of assmebly workshop



0.8mm PP Non Woven Fabric Lamination Machine Extrusion Coating Lamination Line 0

0.8mm PP Non Woven Fabric Lamination Machine Extrusion Coating Lamination Line 1

0.8mm PP Non Woven Fabric Lamination Machine Extrusion Coating Lamination Line 2



0.8mm PP Non Woven Fabric Lamination Machine Extrusion Coating Lamination Line 3

  •
  • Showcase of the assmebly workshop

0.8mm PP Non Woven Fabric Lamination Machine Extrusion Coating Lamination Line 4





  • Aplication of the products

0.8mm PP Non Woven Fabric Lamination Machine Extrusion Coating Lamination Line 5

0.8mm PP Non Woven Fabric Lamination Machine Extrusion Coating Lamination Line 6

  • Packing & Loading Details (or customized packing instruction)

1. Simply wrapped by the blanket first and the tight it by the cling stretch film.

2. Export standard are supplied with well packed by plywood cartoon or inron cartoon. We can make the packages

     according to customer's request.





0.8mm PP Non Woven Fabric Lamination Machine Extrusion Coating Lamination Line 7

0.8mm PP Non Woven Fabric Lamination Machine Extrusion Coating Lamination Line 8



  • Briefing about the company

Changzhou Da Li Plastic Machinery Co., Ltd.



     Changzhou Xin Da Li Plastic Machinery Co., Ltd. is a subsidiary of Changzhou Da Li Plastic Machinery Co., Ltd.,

located in Changzhou Wujin Science and Technology Industrial Park, was established in March 2015 with a registered

capital of 10.8 million yuan, covering an area of over 10,000 square feet. We provide our clients with all kinds of plastic

machinery products and technical services.





0.8mm PP Non Woven Fabric Lamination Machine Extrusion Coating Lamination Line 9

Certification

0.8mm PP Non Woven Fabric Lamination Machine Extrusion Coating Lamination Line 10



Scenarions of busineess negotiation



0.8mm PP Non Woven Fabric Lamination Machine Extrusion Coating Lamination Line 11

0.8mm PP Non Woven Fabric Lamination Machine Extrusion Coating Lamination Line 12



Our Client representatives:



0.8mm PP Non Woven Fabric Lamination Machine Extrusion Coating Lamination Line 13

0.8mm PP Non Woven Fabric Lamination Machine Extrusion Coating Lamination Line 14

Our Services

One station service to make sure our customer get ancillary equipments and good service.

(1) Professional advice and rich experience help to choose machine.

(2) Warranty time: All machines are guaranteed for one year.

(3) Before the dispatch the equipment, we will conduct the commission of the machine and invite the client representative join us to witness it.

      Once the machine reached the site of the clients, we will send our technicals to mantle up and commisson the machine, and train the local

      employee.

(4)Any problem: If you have any questions or any demands, we will reply you within 24 hours inquiry.

(5) Additives: installation book, Manual book, tool box will be sent with machine.

Product Quality

All products are guaranteed for one year, if any problems happen in guarantee period, our company will maintain for free.

Technical Service

We can provide design, installation and debugging services or remote maintenance teaching.

Delivery The Cargo To Nearest Port

We will arrange the shipment and delivery the cargo to your nearest port, save time and cost.

Detail Product Information

Provide picture, video, instruction and product brochure.

Reply Timely

24 hours hot line ,we will reply email within 12 hours.
