Product Details:
|
Name: | Three-layer Co-extrusion Stretch Film/ Cling Film Machine | Layers Of Film: | Three Layer |
---|---|---|---|
Screw Speed: | 150 R/min | After Sale Service: | Video Technical Support, Free Spare Parts, Field Installation, Commis |
Voltage: | 380V 3P/50HZ, It Can Be Customized | Power(w): | 130KW |
Screw Design: | Triple Screw Extruder | Diameter Of Screw: | Φ65×30:1 X2;Φ90×30:1 X1 |
Max Extrusion: | 150-200KG/h | Thickness: | 0.001mm--0.05mm |
Width Of Film: | 1500mm | Dimension(l*w*h): | 7.5mx3mx3.4m |
Output: | 3T--5T/24 Hours | ||
High Light: | Cast Polypropylene Cpe Film Line,Cpe polypropylene Production Process,1800mm Cpe film machine |

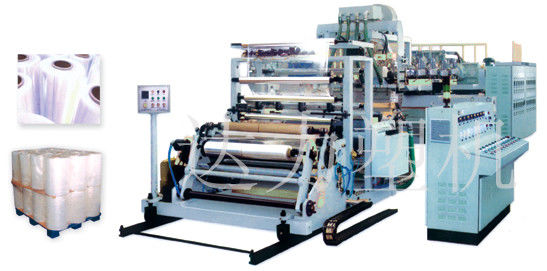

. Cast Stretch Film Machine Triple Screw Plastic Extruder is the automatic All-in-one model which is designed according to the advanced technology from domestic and foreign markets, with auto cutting, auto laps changing apparatus and auto PLC system..
Material |
LDPE/LLDPE |
Working width |
1500mm max |
Thickness range |
0.012mm to 0.05mm |
Screw Dia. and L/D |
Φ65×30:1 X2;Φ90×30:1 X1 |
T die width | 1850mm |
Substrcture of Layer | Three layers ABC |
Actual comsumption of power(KW) | 70 KW per hour |
Power supply | Three Phase 380V( ±10% )50hz, Single Phase 220V50Hz |
Mechanical speed: | 200m/min |
Extrusion capacity | 150~200kg/h(varies with material) |
Installation power(KW) |
About 140kw ( actual consumption is 40%-50% of total installation power) |
Installation space |
L=7.5M; W=3m; H=3.5m
|
Scene of assmebly workshop
