Product Details:
|
Name: | Two-layer/three-layer Co-extrusion Casting Film Extrusion Productio Line | Plastic Processed: | LLDPE/LDPE/POE/EVA/Elastomer/Polythylene Particle |
---|---|---|---|
Application: | Sheet/ Film | Power Requirement: | 380V 3P/50Hz, Single Phase 220V, 50Hz,or Customized |
Power(w): | 280KW | Screw Design: | Multiple Screw Extruder |
Certification: | CE | Usage: | Disposable Umbrella, Shoe Cover, Hair Cover,nakpin, Sanitary |
Thickness: | 0.015mm--0.1mm | Weight: | 15T |
Dimension(l*w*h): | 12mx4.5mx3.5m | Output: | 4.5T--8T/24 Hours |
High Light: | 3000mm T die double layer co extrusion line,3000mm double layer co ex extrusion line,3000mm Cast Stretch Film Extrusion Line |
The machine control is integrated by PLC system with parameter setting, data transmission and feedback and alarm etc..With double-station automatic winder and tension control system, winding process is stable, precise and automatic. Automatic recycle system for collecting and recycle the off-cut from production on line.Automatic knife, automatic cutting, automatic roll changing, safe and convenient operation.
Material |
CPE/TPE |
Working width |
2400mm max |
Thickness range |
0.015mm to 0.1mm |
Screw Dia. and L/D |
Φ110×35:1 X1;Φ110 35X1 X2 |
T die width | 3000mm |
Roller surface length | 3000mm |
Winding Diameter | Φ500 |
Power supply | Three Phase 380V( ±10% )50hz, Single Phase 220V 50Hz , |
Mechanical speed: | 30-100m/min |
Extrusion capacity(Maximum) | 180~200kg/h(varies with material) |
Installation power |
About 280kw ( actual consumption is 40%-50% of total installation power) |
Installation space |
L=12M; W=4.5m; H=3.5m
|

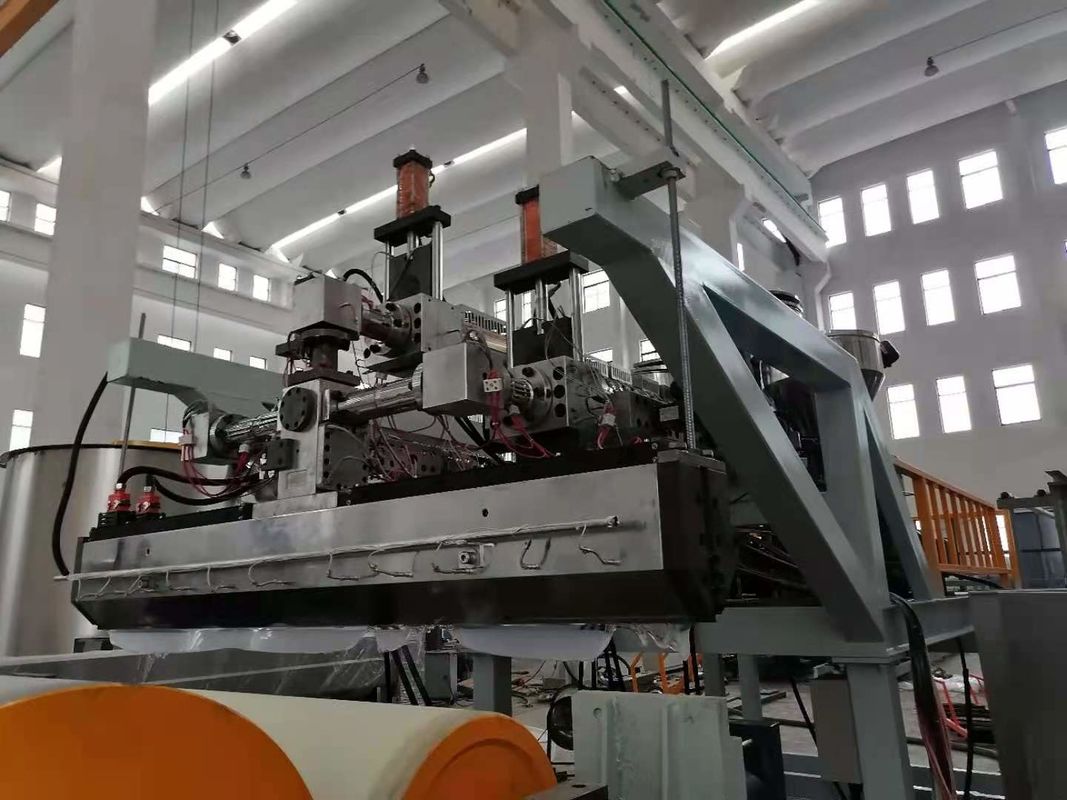

Scene of assmebly workshop
