Product Details
Place of Origin: China
Brand Name: DaLi
Certification: CE
Model Number: cast film extrusion machine/ production line
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: 100000--180000 USD Per Set
Packaging Details: Regular Packing with blanket and stretch film or customized requirment package !
Delivery Time: 2-3 months
Payment Terms: T/T
Supply Ability: 5 sets per month
Name: |
PP/PE Plastics Casting Film Machine |
Plastic Processed: |
PP/PE Graunle |
Application: |
Sheet/ Film For Regular Packing |
Power Supply: |
380V 3P/50hz, Single Phrase 220v Or Customized |
Power(w): |
230KW |
Number Of Extruder: |
Single Extruder |
Certification: |
CE |
Production Speed: |
60--120m/s |
Thickness: |
0.015mm--0.10mm |
Production Capacity: |
120--180 Kg/h |
Dimension(l*w*h): |
12mx4.5mx3.5m |
Name: |
PP/PE Plastics Casting Film Machine |
Plastic Processed: |
PP/PE Graunle |
Application: |
Sheet/ Film For Regular Packing |
Power Supply: |
380V 3P/50hz, Single Phrase 220v Or Customized |
Power(w): |
230KW |
Number Of Extruder: |
Single Extruder |
Certification: |
CE |
Production Speed: |
60--120m/s |
Thickness: |
0.015mm--0.10mm |
Production Capacity: |
120--180 Kg/h |
Dimension(l*w*h): |
12mx4.5mx3.5m |
. The main raw material comes from PP/ PE graunule. it processed by heating, melting, extrusion, casting and f
orming.The whole technics flow from feeding raw material to forming,and casting device adopts the advanced
electric equipment,PLC controller &Human machine interface,they could be controlled solely or with high
automation;the speed of extrusion and molding is controlled by PLC,The molding roller,silicone roller and
assistantcooling rolle adopts recycle water cooling structure,it is good for casting effect,The molding rollers clutch
adopts the pneumatic controller. Electric Technology adopt international famous brand,it can suitable all countries.
Material |
PP/PE or recycled PE material |
Working width |
2100mm max |
Thickness range |
0.015mm to 0.1mm |
Screw Dia. and L/D |
Φ120×35:1 X 1 |
T die width | 2400mm |
Roller surface length | 2400mm |
Winding Diameter | Φ500 |
Power supply | Three Phase 380V( ±10% )50hz, Single Phase 220V 50Hz |
Mechanical speed: | 30-100m/min |
Extrusion capacity(Maximum) | 100~150kg/h(varies with material) |
Installation power |
About 230kw ( actual consumption is 40%-50% of total installation power) |
Installation space |
L=12M; W=4.5m; H=3.5m
|

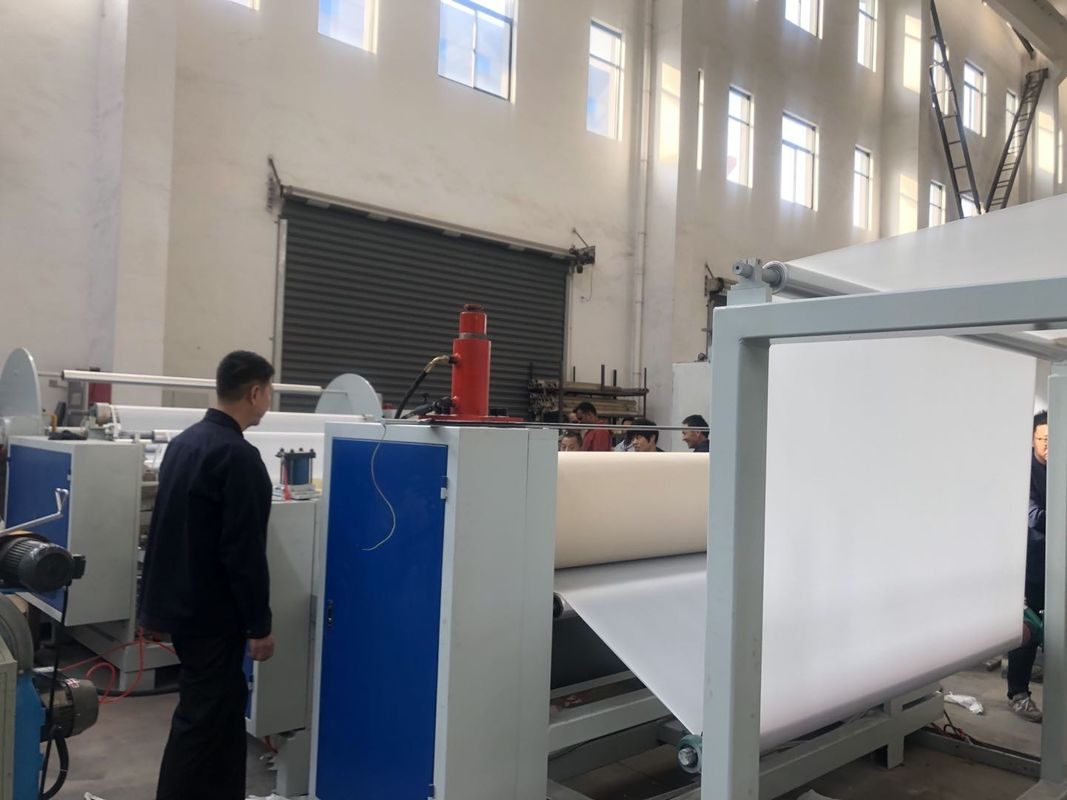

Scene of assmebly workshop
