Product Details:
|
Name: | Cast Film Extrusion Machine | Raw Material: | LLDPE/LDPE/POE/EVA/Elastomer/Polythylene |
---|---|---|---|
Production Capacity: | 80---100kg/h | Crew Requirments: | Two Crew/one Shit, It Is Need Two Shifts |
Power Requirments: | 380V 3P/50hz, Single Phase 220v,50hz.or Customized | Power(w): | 140KW |
Screw Extruder: | Φ90×35:1 X 1 | Certification: | CE |
Usage: | CPE/TPE Glove; Disposable Gown; Shower Hair Cap;shoe Cover; | Thickness: | 0.015mm--0.1mm |
Weight: | 12.5T | Dimension(l*w*h): | 12mx4.5mx3.5m |
High Light: | 140KW cast stretch film extrusion lines,140KW plastic extrusion cast film line,140KW cpe cast film line |
Using linear low density polyethylene(LLDPE), Low density polyethylene(LDPE), elastomeric material(POE) as well as a portion of
opeing agent as raw material for producing embossed film on machine equipped with embossed roller and necessary parts used for making disposable CPE/TPE gloves.
Material |
CPE/TPE |
Working width |
1600mm max |
Thickness range |
0.015mm to 0.1mm |
Screw Dia. and L/D |
Φ90×35:1 X 1 |
T die width | 2100mm |
Roller surface length | 2100mm |
Winding Diameter | Φ500 |
Power supply | Three Phase 380V( ±10% )50hz, Single Phase 220V 50Hz |
Mechanical speed: | 30-100m/min |
Extrusion capacity(Maximum) | 80~100kg/h(varies with material) |
Installation power |
About 140kw ( actual consumption is 40%-50% of total installation power) |
Installation space |
L=12M; W=4.5m; H=3.5m
|

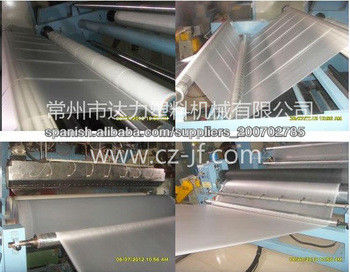

Scene of assmebly workshop
