Product Details
Place of Origin: China
Brand Name: DaLi
Certification: CE
Model Number: DL-2100 cast film extrusion machine/ production line
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: 100000--180000 USD Per Set
Packaging Details: Regular Packing with blanket and stretch film or customized requirment package !
Delivery Time: 2-3 months
Payment Terms: T/T
Supply Ability: 5 sets per month
Name: |
CPE/TPE Cast Film Extrusion Machine |
Plastic Processed: |
LLDPE/LDPE/POE/Elastomer/Polythylene |
Application: |
Sheet/ Film For CPE/TPE Glove |
Material: |
Granule |
Voltage: |
380V 3P/50hz, Singel Phase 220V, 50hz. It Can Be Customized |
Power(w): |
200KW |
Screw Design: |
Single Screw Extruder |
Certification: |
CE |
T-die: |
T Type Special Chanel Mould |
Thickness: |
0.015mm--0.06mm |
Weight: |
14T |
Dimension(l*w*h): |
12mx4.5mx3.5m |
Name: |
CPE/TPE Cast Film Extrusion Machine |
Plastic Processed: |
LLDPE/LDPE/POE/Elastomer/Polythylene |
Application: |
Sheet/ Film For CPE/TPE Glove |
Material: |
Granule |
Voltage: |
380V 3P/50hz, Singel Phase 220V, 50hz. It Can Be Customized |
Power(w): |
200KW |
Screw Design: |
Single Screw Extruder |
Certification: |
CE |
T-die: |
T Type Special Chanel Mould |
Thickness: |
0.015mm--0.06mm |
Weight: |
14T |
Dimension(l*w*h): |
12mx4.5mx3.5m |
Adopting the combination of low density polyethylene(LLDPE), Low density polyethylene(LDPE), elastomeric material(POE)

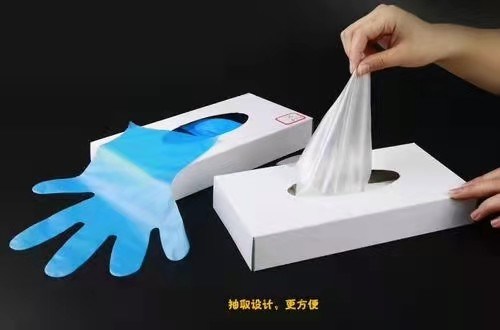

as raw material for producing the extrusion film sheet which is widely used for making disposable CPE/TPE gloves.
The whole technics flow from feeding raw material to forming,and casting device adopts the advanced
electric equipment,PLC controller &Human machine interface,they could be controlled solely or with high
automation.The speed of extrusion and molding is controlled by PLC,The molding roller,silicone roller and assistant
cooling rolle adopts recycle water cooling structure,it is good for casting effect,The molding rollers clutch
adopts the pneumatic controller.
Material |
CPE/TPE |
Working width |
1800mm max |
Thickness range |
0.015mm to 0.06mm |
Screw Dia. and L/D |
Φ120×35:1 X 1 |
T die width | 2100mm |
Roller surface length | 2100mm |
Winding Diameter | Φ500 |
Power supply | Three Phase 380V( ±10% )50hz, Single Phase 220V 50Hz |
Mechanical speed: | 30-100m/min |
Extrusion capacity(Maximum) | 100~150kg/h(varies with material) |
Installation power |
About 200kw ( actual consumption is 40%-50% of total installation power) |
Installation space |
L=12M; W=4.5m; H=3.5m
|
Scene of assmebly workshop
